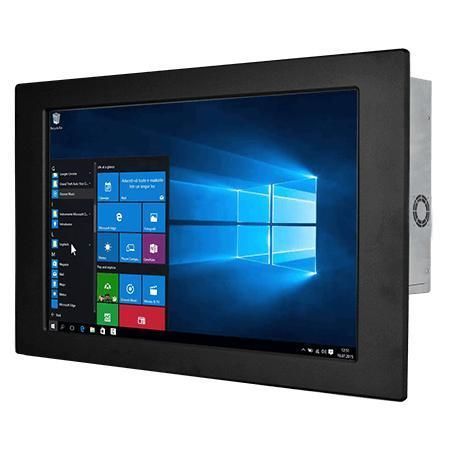

Resistive touch screen panel PC W24IAD7T-PMA2

24"Intel® Core™ i9-12900TEIntel® Core™ i7-12700TE

Overview
Winmate W24IAD7T-PMA2 is a 24.0-inch panel-mount industrial Panel PC built for machine control, factory automation and operator HMI. It supports 12th/14th Gen Intel® Core™ processors (Alder Lake / Raptor Lake T-series) and offers flexible I/O, storage and mounting options for long lifecycle deployment.

Key features

• 24.0" 1920 x 1080 FHD display, 250 nits, 3000:1 contrast
• 12th/14th Gen Intel® Core™ processors (i3 / i5 / i7 / i9, multiple T-series SKUs)
• 2 x SO-DIMM DDR5 4800 MHz, up to 64 GB (32 GB per slot)
• Integrated dual 2.5 Gigabit Ethernet (Intel® controllers)
• Multi-display support: DP1.4a (DP++) standard; HDMI 2.0b optional
• Multiple I/Os: 4 x USB 3.2 Gen2x1 (Type-A), serial ports, audio
• 12 V DC power input (DIN4), optional 12V 220W adapter

Product highlights

• High-performance computing for multitasking industrial and embedded applications.
• Operator interface options: resistive touch or protective cover glass (no touch) to suit different environments.
• Optimized thermal design with fan cooling for extended operation and low power consumption.
• Versatile mounting: panel mount as default; VESA mount available as an option.

Technical specifications

• Model: W24IAD7T-PMA2
• Brand: Winmate
• Display size: 24.0 inches, Resolution: 1920 x 1080, Brightness: 250 nits, Contrast: 3000:1, View angles: 89/89/89/89
• Touch / Glass: Resistive touch (optional); protection glass without touch (optional)
• Processor (default / optional): Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; also i3-14100T, i5-14500T, i7-14700T, i9-14900T
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256/512 GB, 1/2/4 TB; optional 2 x SATA III for 2.5" SSD/HDD up to 2 TB (RAID support)
• Ethernet: 2 x Intel® Ethernet Controller (2.5 Giga LAN RJ45)
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / Bluetooth: optional via M.2 2230 E-Key
• USB: 4 x USB 3.2 Gen2x1 (10 Gbps, Type A)
• Serial ports: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video output: 1 x DP1.4a (DP++), up to 4096x2160@60Hz; optional 1 x HDMI 2.0b up to 4096x2160@60Hz
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD), 1 x M.2 2230 E-Key (Wi‑Fi)
• Power input: 1 x 12V DC (DIN4 pin)
• Mechanical dimensions: 606 x 376 x 85 mm; Cut-out: 560.5 x 327.5 mm; Weight: 8.7 kg
• Mounting: Panel mount (default); VESA mount optional
• Enclosure: Metal housing; Cooling: fan design
• Operating humidity: 10% to 90% RH, non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• Included/optional accessories: 100~240V AC to DC adapter (12V 220W), power cord, VESA screws, mounting clips
