Resistive touch screen panel PC R19IP7T-PMM1
LCD19"Intel® Pentium® N4200

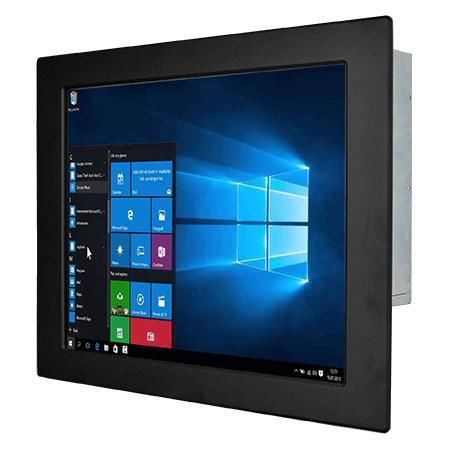

Resistive touch screen panel PC - R19IP7T-PMM1 - Winmate, Inc. - LCD / 19" / Intel® Pentium® N4200
Resistive touch screen panel PC - R19IP7T-PMM1 - Winmate, Inc. - LCD / 19" / Intel® Pentium® N4200
Resistive touch screen panel PC - R19IP7T-PMM1 - Winmate, Inc. - LCD / 19" / Intel® Pentium® N4200 - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
LCD, resistive touch screen
Display size
19"
Processor
Intel® Pentium® N4200
Resolution
1280 x 1024
Operating system
Linux, Windows 10 IoT Enterprise
Construction
fanless, metal chassis, plastic housing
Applications
industrial
Other characteristics
all-in-one, Ethernet, RJ45
Memory size

Max.: 16 GB

Min.: 0 GB

Description

Overview
  • The Winmate R19IP7T-PMM1 is a 19\" panel-mount Panel PC powered by the Intel® Pentium® N4200 (Apollo Lake), engineered for machine control, factory automation and operator HMI applications requiring fanless operation and flexible I/O/storage options.


Key features
  • Intel® Pentium® N4200 (1.10 GHz, burst up to 2.5 GHz)
  • 19.0\" display, 1280 x 1024 resolution; resistive touch or protection glass options
  • Flexible storage: M.2 2242 B-key and 2.5\" SATA bay (one 2.5\" HDD/SSD possible)
  • Multiple I/Os: 4 x USB 3.0 (Type-A), 2 x Gigabit LAN, 2 x serial ports
  • Display outputs: DP1.2 (default, up to 4096 x 2160 @60 Hz); HDMI 1.4 and VGA optional
  • Fanless metal housing, 12 V DC (Din4 pin) power input, TPM 2.0, CE/FCC certified


Display
  • Size: 19.0\" — Resolution: 1280 x 1024
  • Brightness: 250 nits — Contrast: 1000:1
  • Touch/Glass: Resistive touch optional; protection glass option for non-touch installations
  • Active area: 376.32 x 301.06 mm — Viewing angles: 85 / 85 / 80 / 80


System specifications
  • Processor: Intel® Pentium® N4200 (Quad Core, 1.1 GHz base, up to 2.5 GHz)
  • Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
  • Storage: 128 GB SSD default; options up to 1 TB; supports 2 x SATA III for 2.5\" drives and M.2 2242 (SATA)
  • Ethernet: 2 x Intel® Gigabit LAN (RJ45)


I/O & expansion
  • USB: 4 x USB 3.2 Gen1 (Type-A)
  • Serial: 1 x RS232/422/485 (default RS232), plus 1 x RS232 (configurable)
  • Video: DP1.2 (default), HDMI 1.4 optional, VGA optional
  • Expansion: 1 x M.2 2242 B-key (SATA), 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1


Mechanical
  • Dimensions: 474 x 384 x 78 mm — Cut-out: 431 x 341 mm
  • Weight: 6.9 kg — Metal enclosure — Panel mount (VESA optional)
  • Power input: 12 V DC (Din4 pin); adapter available 12 V 84 W


Environment & certification
  • Operating temperature: 0 °C to 50 °C — Storage: -10 °C to 60 °C
  • Operating humidity: 10% to 90% RH (non‑condensing)
  • Certifications: CE, FCC


Security & software
  • TPM 2.0 supported
  • OS options: Windows 10 IoT Enterprise (64-bit) and Linux distributions available on request


Accessories
  • Typical delivery/accessories: 100~240 V AC to 12 V DC adapter (12 V 84 W), power cord, VESA screws, mounting clips, driver CD & manual

Catalogs

Go to the Winmate, Inc. website for more information

Other Winmate, Inc. products

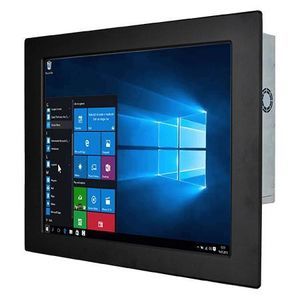

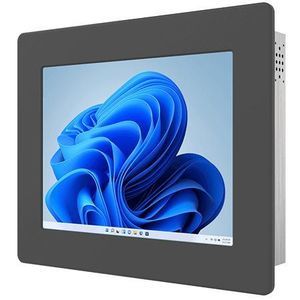

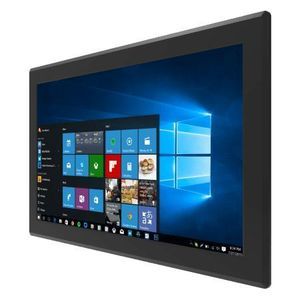

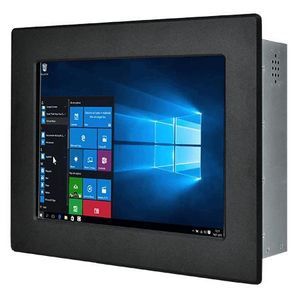

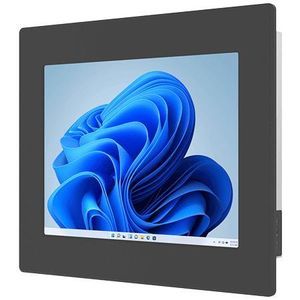

Industrial Resistive Panel Mount Panel PC
