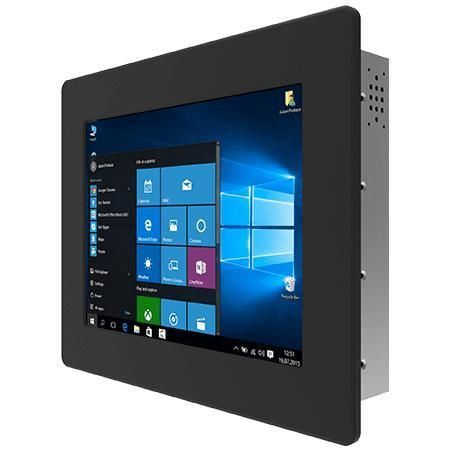

Resistive touch screen panel PC R10IT3S-PMT2

TFT LCD10.4"Intel® Core™ i5-1135G7

Product Overview
The R10IT3S-PMT2 is a 10.4" panel-mount Panel PC equipped with an Intel® Core™ i5-1135G7 processor, designed for machine control, factory automation and operator HMI in industrial environments. The unit features fanless cooling, metal enclosure and multiple expansion and mounting options for OEM and embedded applications.

Key Features

• 10.4" TFT XGA (1024 x 768), 500 nits, 1000:1 contrast
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless design and low power consumption
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Integrated dual Intel® Ethernet controllers (2 x 2.5 Giga LAN)
• M.2 expansion: Key M for M.2 2242 SATA III (optional M.2 2280 NVMe); M.2 2230 E-Key for Wi‑Fi
• TPM 2.0 security

Operator & Mechanical Features

• Touch options: resistive touch (optional) or protection glass without touch
• Mounting: panel mount (default); optional VESA and rear mounting
• Controls & indicators: brightness adjustment knob, power and storage LEDs, power/reset buttons
• Enclosure: metal housing; fanless cooling for continuous operation
• Dimensions / Cut-out / Weight: 284 x 234 x 56 mm / 262 x 203 mm / 2.4 kg

Certifications

• CE
• FCC

Typical Applications

• Machine control
• Factory automation
• Operator HMI
• Industrial embedded systems and OEM integrations

Technical Specifications

• Display: 10.4" XGA (1024 x 768), 500 nits
• Processor: Intel® Core™ i5-1135G7
• Memory: 4 GB default; options 8/16/32 GB (1 x SO-DIMM)
• Storage: 128 GB SSD default; optional up to 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• IO: 2 x USB 3.2 Gen2x1 Type-A; 1 x RS232/422/485 + 1 x RS232; 2 x 2.5 Giga LAN; HDMI 2.0 (optional); audio speakers
• Power: 12V DC input (2.5φ DC jack); adapter 12V 120W
• Operating: 0°C to 50°C; 10% to 90% RH non-condensing
