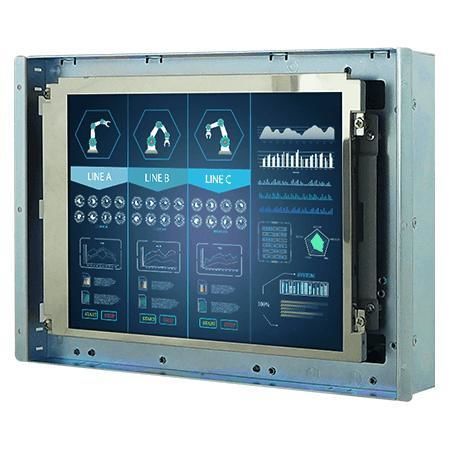

LCD monitor R08L200-OFU1TR

resistive touch screen8.4"800 x 600

Overview
Winmate R08L200-OFU1TR is an 8.4-inch open-frame transflective display intended for industrial visualization, control rooms, equipment monitoring and kiosk integrations. The transflective panel improves readability in varied lighting, while the metal fanless enclosure and multiple mounting options simplify integration into OEM systems.

Key features

• 8.4 in transflective LCD, 800 x 600 resolution
• 600 nits panel brightness (transflective)
• VGA (standard) and HDMI, DVI (optional) video inputs
• Open-frame design with VESA mounting (standard) and panel-mount option
• Metal enclosure with fanless cooling

Product highlights

• Low power consumption and effective heat dissipation for continuous operation in production and industrial environments
• Flexible installation: rear, VESA and panel mounting for kiosks, ATMs, vending machines and embedded systems
• Open-frame construction for easy integration into custom housings and OEM panels
• Industrial-grade design: metal chassis and fanless configuration for increased reliability
• Customization options: touch types (resistive, SAW), protection glass, brightness variants and I/O configurations

Certifications & Compliance
CE, FCC

IO & Optional Features

• Touch/Glass options: resistive touch (optional); protection glass without touch (optional); SAW touch (optional)
• USB: 1 x USB for touch (optional)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: audio line-in (3.5 mm) (optional); 2 x speakers (optional)

Environment & Mechanical

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Dimensions: 251 x 174 x 49 mm
• Mounting: VESA mount (default); panel mount (optional)
• Enclosure: metal; cooling: fanless

Accessories & Power

• Included accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: remote controller (varies by product)
• Power input: 12V DC

Control

• On-screen key control: 5 keys: -, +, Power, Esc, Enter

Technical specifications

• Model: R08L200-OFU1TR
• Brand: Winmate
• Display size: 8.4 inches
• Resolution: 800 x 600
• Panel brightness: 600 nits
• Contrast ratio: 600:1
• View angles (°): 75, 75, 60, 70
• Display color: 262K colors
• Active area: 170.4 x 127.8 mm
• Touch/Glass: resistive touch (optional); protection glass without touch (optional); SAW touch (optional)
• USB port: 1 x USB for touch (optional)
• Video ports: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: audio line-in (3.5 mm) (optional); 2 x speakers (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Dimensions: 251 x 174 x 49 mm
• Mounting: VESA mount (default); panel mount (optional)
• Enclosure: metal; cooling: fanless
• Accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws
• Optional accessory: remote controller (varies by product)
• Power rating: 12V DC input
• Control keys: 5 keys (-, +, Power, Esc, Enter)
• Certifications: CE, FCC
