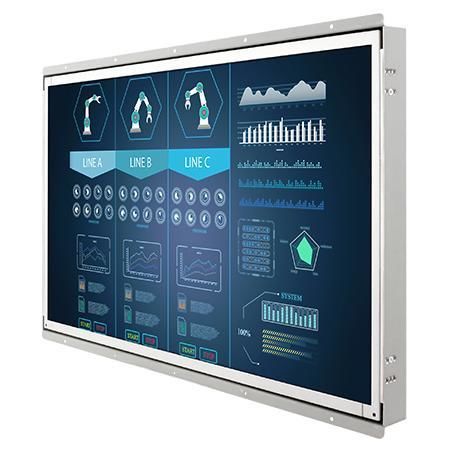

Resistive touch screen monitor W22L100-OFA3HB

for digital signagefor industrial machines21.5"

Overview
Winmate W22L100-OFA3HB is a 21.5" open-frame high-brightness display designed for industrial visualization, control rooms and equipment monitoring. It provides 1920x1080 resolution, a 1000-nit panel, multiple mounting options and a metal enclosure for continuous 24/7 operation.

Key Features

• 21.5", 1920 x 1080
• VGA and HDMI inputs
• Open-frame design
• VESA and rear mounting
• High brightness (1000 nits)

Highlights
Low Power Consumption
Designed for low power draw and effective heat dissipation to support long-term use in production environments.

Mounting
Rear and VESA mounting enable flexible installation in integrated equipment, kiosks and rack systems.

Open Frame Monitor
Provides structural support for electronic components without a full enclosure; suitable for ATMs, vending machines, casino displays, airport information systems and retail kiosks.

High Brightness & Optical Bonding
Optically bonded anti-reflective protective glass reduces reflections and eliminates the air gap to improve contrast and readability in high ambient light or humid conditions.

Reliability & Image Quality
Industrial-grade assembly, fanless cooling and stable components deliver dependable image quality for continuous operation.

Display Ports & Customization
Configurable ports (VGA/HDMI/DVI) and optional USB for touch. Custom options include panel brightness, glass surface treatment, display ports and mounting accessories.

Technical specifications

• Size: 21.5 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1920 x 1080
• Panel Brightness: 1000 nits
• Contrast Ratio: 5000
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen (Optional)
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 504 x 318 x 60 mm
• Mounting: VESA Mount / Rear Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC input; 24V DC input (optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
