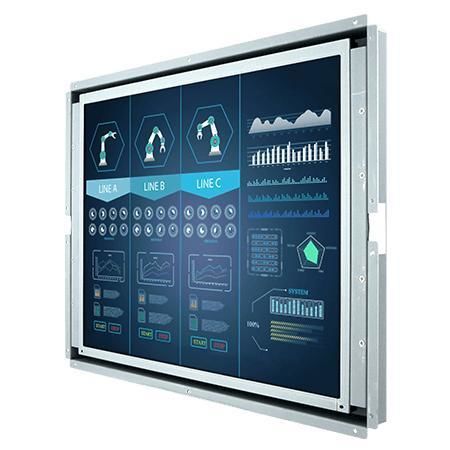

LCD monitor S17L500-OFA1HB

resistive touch screenPOSfor digital signage

Summary
Winmate S17L500-OFA1HB is a 17.0-inch open-frame high brightness display for industrial visualization, control rooms and equipment monitoring. It is designed for embedded and continuous-operation environments, providing high luminance, flexible mounting and optional touch or protection glass.

Key features

• 17.0" LCD, 1280 x 1024 resolution
• Panel brightness: 1000 nits
• Inputs: VGA (default), HDMI (optional), DVI (optional)
• Open frame design with VESA mount and panel mount
• Optional resistive touchscreen or protection glass (optically bonded)

Applications & integration
Suitable for ATMs, kiosks, vending machines, control rooms, industrial HMI, airport information displays and other embedded equipment. The open-frame format eases integration into cabinets and housings where bezel-free mounting is required.

Reliability & customization

• Fanless design for reduced maintenance
• Operating temperature: 0°C to 50°C; storage: -10°C to 60°C
• Operating humidity: 10%–90% RH, non-condensing
• Available customization: panel brightness, glass treatment, I/O ports, power input (12V DC standard, 24V optional)
• Typical accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)

Certifications

• CE
• FCC

Technical specifications

• Size: 17.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive touchscreen (optional); Protection glass without touch (optional)
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Display Color: 16.7M colors
• Active Area: 337.920 x 270.336 mm
• IO Ports: USB 1 x (touch, optional); Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• Audio: Audio line-in (3.5mm) (optional); 2 x Speaker (optional)
• Mechanical Dimension: 410 x 312 x 58 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless design
• Power Rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
