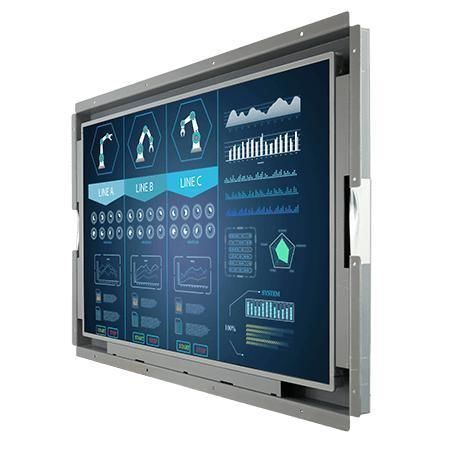

LCD monitor W32L300-OFA3

touch screenindustrial32"

Overview The Winmate W32L300-OFA3 is a 32-inch open frame display engineered for industrial visualization, control rooms and equipment monitoring. It supplies a support structure for the LCD without a full enclosure, enabling direct integration into kiosks, ATMs, vending machines and embedded OEM systems. The product focuses on low power consumption, effective heat dissipation, multiple mounting options and industrial-grade reliability.

Key Features

• 32" display, 1920 x 1080 resolution
• Panel brightness 400 nits, contrast ratio 4000:1
• VGA (default), HDMI (optional), DVI (optional)
• Open frame design with VESA and rear mounting support
• Fanless design; metal enclosure
• Optional touch (Protection Glass) and USB touch interface

Highlights

• Designed for continuous operation in industrial and commercial environments
• Multiple mounting solutions for OEM and integrator installations
• Customization options: panel brightness, glass surface treatment, display ports and power plug

Certifications

• CE
• FCC

Accessories

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: remote controller, additional I/O or touch options

Technical specifications

• Display - Size: 32 inches
• Display - Resolution: 1920 x 1080
• Display - Panel Brightness: 400 nits
• Display - Contrast Ratio: 4000:1
• Display - View Angles: 89, 89, 89, 89
• Display - Color: 16.7M Colors
• Display - Active Area: 698.4 x 392.85 mm
• Touch / Glass: Protection Glass (Optional)
• IO - Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• IO - USB: 1 x USB for touch (Optional)
• IO - Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical - Dimension: 810 x 499.4 x 68 mm
• Mechanical - Mounting: VESA Mount / Rear Mount
• Mechanical - Enclosure: Metal
• Cooling: Fanless design
• Power: 24V DC in
• Control: 5 keys: -, +, Power, Esc, Enter
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
