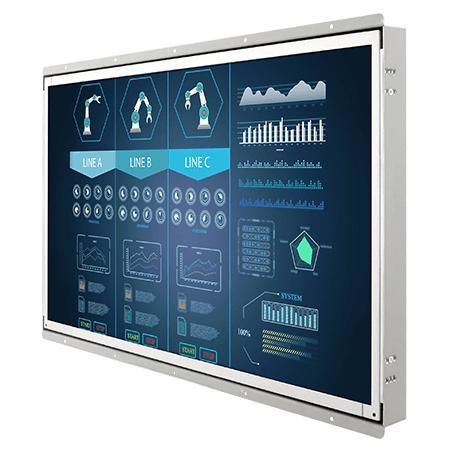

Resistive touch screen monitor W22L100-OFA3

for industrial machinesfor HMI interface21.5"

Overview
Winmate W22L100-OFA3 is a 21.5-inch open-frame display designed for industrial visualization, control rooms and equipment monitoring. It delivers Full HD (1920 x 1080) image quality in a compact open-frame form factor with VESA and rear mounting options and a rugged metal enclosure with fanless cooling for continuous operation.

Key Features

• 21.5 inches, 1920 x 1080 (Full HD)
• VGA (default), HDMI (optional), DVI (optional) video inputs
• Open-frame design with VESA and rear mounting for integration
• Metal enclosure and fanless design for silent, maintenance-free operation
• Optional touch variants: resistive, SAW or protection glass

Highlights

• Low power consumption and effective heat dissipation for long-term use in production environments
• Flexible installation: rear mount or standard VESA mount
• Open-frame format supplies supporting structure without bezel—ideal for kiosks, ATMs, vending machines, casino monitors, airport info displays and OEM integration
• Customizable options: panel brightness, glass surface treatment, display port configurations and power input variants

IO and Accessories

• Standard/optional I/O: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional), 1 x USB for touch (optional)
• Audio: audio line-in (3.5 mm) optional; 2 x speakers optional
• Included accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional accessories: remote controller (varies by product)

Applications

• Industrial visualization and control rooms
• Equipment monitoring and machine integration
• ATMs, vending and kiosk systems
• Transportation displays, airport information systems, retail and casino signage
• OEM and system integrators requiring long lifecycle availability

Specifications

• Model: W22L100-OFA3
• Brand: Winmate
• Size: 21.5 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M colors
• Active Area: 476.64 x 268.11 mm
• Touch / Glass (optional): Resistive touch; Protection glass without touch; SAW touch
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• IO Ports: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional); 1 x USB for touch (optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speaker optional
• Mechanical Dimensions: 504 x 318 x 60 mm
• Mounting: VESA Mount / Rear Mount
• Enclosure: Metal
• Cooling System: Fanless design
• Power Rating: 12 V DC input (24 V DC optional)
• Buttons / Control: 5 Keys: -, +, Power, Esc, Enter
• Included Accessories: VGA cable; HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
