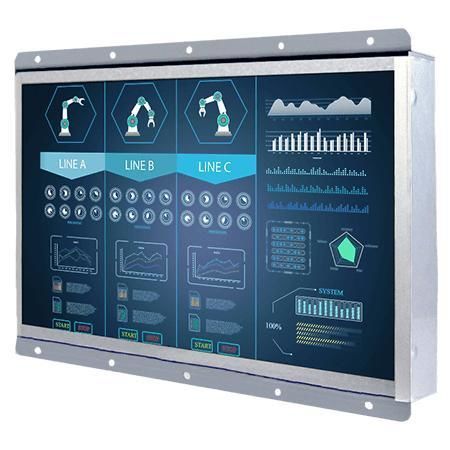

Resistive touch screen monitor W12L100-OFM9HB

industrialfor displaysfor digital signage

Overview
The Winmate W12L100-OFM9HB is a 12.1-inch open-frame high-brightness display engineered for industrial visualization, control rooms and embedded equipment integration. Designed for continuous 24/7 operation, it delivers a 1280 x 800 resolution panel with 1000 nits brightness and multiple mounting options for kiosk, ATM, vending and OEM applications.

Key features

• 12.1-inch display, 1280 x 800 resolution
• High brightness panel: 1000 nits for improved readability in bright environments
• Open-frame design for easy integration — VESA and rear mounting supported
• Standard VGA input; HDMI and DVI available as options
• Fanless metal enclosure for enhanced reliability

Applications

• Industrial HMI and control-room displays
• Kiosks, ATMs, ticketing and vending machines
• Transportation and outdoor information panels where high brightness is required

Design & reliability
The unit is optimized for low power consumption and effective heat dissipation to support continuous operation. Front protective anti-reflective glass is bonded with optical-grade adhesive to reduce reflections and improve contrast. Multiple touch and glass configurations are available to match application needs.

I/O and options

• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch interface (optional)
• Audio: line-in (3.5 mm) and 2 x speakers (optional)
• Power: 12V DC input (24V DC optional)

Certifications
CE, FCC

Technical specifications

• Display size: 12.1 inches
• Resolution: 1280 x 800
• Panel brightness: 1000 nits
• Contrast ratio: 1000:1
• View angles: 88/88/88/88
• Display color: 16.2M colors
• Active area: 261.12 x 163.2 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Dimensions (W x H x D): 280 x 206 x 35 mm
• Mounting: VESA mount / rear mount
• Enclosure: Metal, fanless design
• Accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Control: 5 keys (-, +, Power, Esc, Enter)
