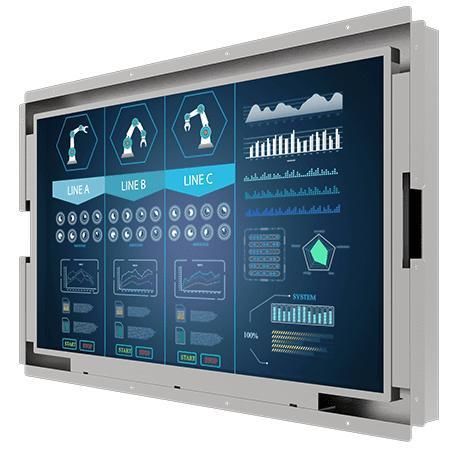

Monitor with touchscreen W32L300-OFA3HB

industrial32"1920 x 1080

Overview
W32L300-OFA3HB is a 32-inch open frame high brightness display engineered for industrial visualization, control rooms and equipment monitoring. Designed for continuous operation and easy integration into kiosks, ATMs, information displays and OEM systems.

Key Features

• 32" diagonal, 1920 x 1080 Full HD
• High brightness up to 1500 nits
• Open frame construction for slim integration
• Rear mount and VESA mounting options
• Video inputs: VGA (default); HDMI, DVI (optional)

Product Highlights & Benefits

• Low power, fanless design suitable for 24/7 industrial use with effective heat dissipation.
• Flexible mounting: rear and VESA options simplify integration into cabinets, kiosks and embedded systems.
• Open frame format provides supporting structure without full bezel, enabling bay or chassis integration.
• Optical bonding and anti-reflective protective glass improve readability in high ambient light and humid conditions.
• Industrial-grade assembly and metal enclosure deliver long lifecycle availability and reliability.
• Wide customization: panel brightness, glass treatments, I/O port options and touch interface (USB) available.

Certifications

• CE
• FCC

Technical Specifications

• Model: W32L300-OFA3HB
• Display Size: 32 inches
• Resolution: 1920 x 1080
• Panel Brightness: 1500 nits
• Contrast Ratio: 4000:1
• Viewing Angles: 89° / 89° / 89° / 89°
• Colors: 16.7M
• Active Area: 698.4 x 392.85 mm
• Touch / Glass: Protection Glass (Optional)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• I/O: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional); 1 x USB for touch (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Mechanical Dimensions: 810 x 499.4 x 97 mm
• Mounting: VESA Mount / Rear Mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 24V DC in
• Controls: 5 keys: -, +, Power, Esc, Enter
• Accessories (Included): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional Accessories: Remote controller (varies)
