Resistive touch screen monitor W18L100-OFA3HB

for digital signagefor industrial machinesfor HMI interface

Overview

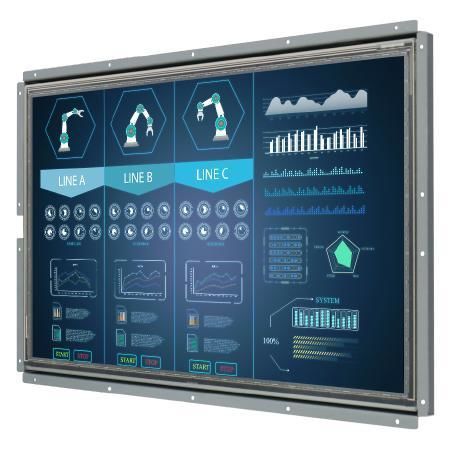

Winmate W18L100-OFA3HB is an 18.5-inch open-frame high-brightness industrial display designed for visualization, control rooms and equipment monitoring. It supports stable hardware integration and continuous operation in embedded, OEM and mission-critical environments.

Key Features

• Size: 18.5 inches; Resolution: 1920 x 1080 (FHD)
• Panel brightness: 1000 nits
• Video inputs: VGA (default), HDMI (optional), DVI (optional)
• Open-frame design with VESA and rear mounting options
• Optional resistive touch or protection glass

Product Highlights

• Low power consumption and fanless thermal design for long-term use in production environments
• Flexible installation: rear mount and VESA mount suitable for kiosks, ATMs, airport information displays and industrial panels
• Optical bonding and anti-reflective cover glass to improve readability and reduce reflections in bright environments
• Rugged metal enclosure and long lifecycle availability for industrial applications
• Customization options for panel brightness, glass treatment, I/O configuration, enclosure and mounting

Certifications

• CE
• FCC

Technical specifications

• Brand: Winmate
• Model: W18L100-OFA3HB
• Display size: 18.5 inches
• Resolution: 1920 x 1080
• Panel brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angles: 89/89/89/89
• Colors: 16.7M
• Active area: 408.96 x 230.04 mm
• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• I/O: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional); 1 x USB for touch (optional)
• Audio: line-in 3.5 mm (optional); 2 x speakers (optional)
• Mechanical dimensions: 451.4 x 278 x 48 mm
• Mounting: VESA mount / Rear mount
• Enclosure: Metal
• Cooling: fanless design
• Power: 12V DC input (24V DC optional)
• Controls: 5 keys (-, +, Power, Esc, Enter)
• Accessories included: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws (varies by product)
