LCD monitor R10L600-OFP1HB

resistive touch screenprojected capacitive touchscreen5-wire resistive touch screen

Overview

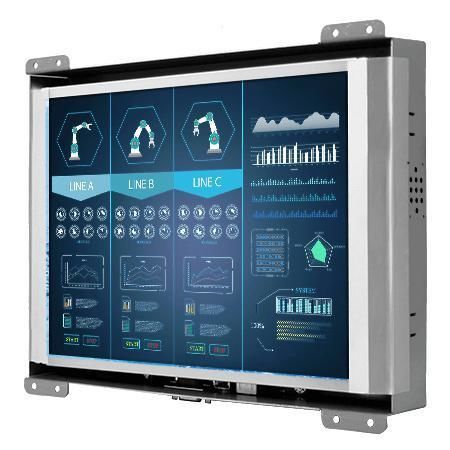

The Winmate R10L600-OFP1HB is a 10.4" open-frame high-brightness touchscreen monitor engineered for industrial visualization, control rooms and embedded equipment. It targets system integrators, OEMs and machine builders requiring reliable 24/7 operation, flexible mounting and long lifecycle availability.

Key Features

• 10.4", 800 x 600 touchscreen display
• VGA input (standard), HDMI and DVI options
• Open-frame design for embedded integration
• VESA and rear mounting support
• High brightness panel (1000 nits) for high ambient light environments

Low Power Consumption
Designed for low power draw and effective heat dissipation with a fanless architecture, the monitor is suitable for continuous operation in production lines and equipment cabinets.

Rear and VESA mounting
Multiple mounting options (rear mount and VESA) simplify installation in kiosks, ATMs, vending machines, airport displays and other embedded enclosures.

Open Frame Monitor
Open-frame construction provides the LCD module and supporting structure without an external bezel or full enclosure, enabling flush integration into panels and housings while protecting internal electronics.

High Brightness
The 1000-nit panel combined with optically bonded, anti-reflective protective glass improves readability in bright ambient light and direct-sun conditions by reducing reflections and increasing perceived contrast.

High Reliability for Industrial Applications
Built for continuous-use environments, the unit is available with multiple touch technologies and optional configurations to match industrial requirements and integration constraints.

Image performance
Winmate display modules are assembled and calibrated to deliver consistent color and contrast suitable for mission-critical visualization and monitoring tasks.

Display ports and customization
Customization options include panel brightness, cover glass treatment, display ports and power input variants. Multiple input options and accessory configurations support project-specific needs.

Technical specifications

• Model: R10L600-OFP1HB
• Brand: Winmate
• Display size: 10.4 inches
• Resolution: 800 x 600
• Touch / Glass options: Four-wire / Five-wire resistive; Resistive Touch Screen (optional); Protection glass without touch (optional); SAW (optional); PCAP (optional)
• Panel Brightness: 1000.0 nits
• Contrast Ratio: 400:1
• View Angles: 70 / 70 / 70 / 60 (L/R/U/D)
• Display Color: 262K Colors
• Active Area: 211.2 x 158.4 mm
• Dimensions (Mechanical): 260 x 215 x 35 mm
• Mounting: VESA mount / Rear mount
• Enclosure: Metal
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB: 1 x USB for touch (optional)
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in (3.5 mm) (optional); 2 x speaker (optional)
• Power rating: 12V DC in (standard); 24V DC in (optional)
• Control Buttons: 5 keys: -, +, Power, Esc, Enter
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional)
