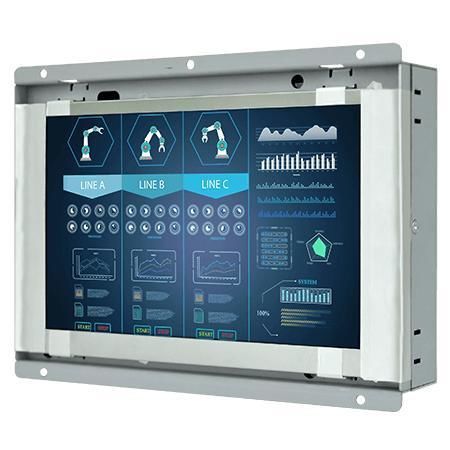

Resistive touch screen monitor W07T700-OFO1HB

industrialfor displaysfor digital signage

Product summary This is a 7” Open Frame High Brightness Display (W07T700-OFO1HB) designed for industrial visualization, control rooms and equipment monitoring. It offers an open-frame module with VESA mounting, multiple video inputs (VGA default, HDMI/DVI optional), optional touch and high-brightness panel options for reliable 24/7 operation.

Key features

• 7” display, 1024 x 600 resolution
• High brightness panel (1000 nits)
• Open-frame design with VESA mount (rear mount optional)
• Video inputs: VGA (default); HDMI, DVI (optional)
• Optional resistive touch or protection glass

Overview The Winmate W07T700-OFO1HB is optimized for industrial and embedded applications that require continuous operation and easy integration. The open-frame form factor supplies a display module and supporting structure for kiosks, ATMs, vending machines, airport information displays and similar OEM integrations.

Low power consumption The display is engineered for efficient power usage and effective heat dissipation to support long-term operation in production and industrial environments.

Mounting options Multiple mounting solutions are supported, including VESA as the default and optional rear mounting tailored for OEM integration and kiosk installations.

High brightness and readability The 1000-nit panel combined with anti-reflective or optical-bonded cover glass improves readability in strong ambient light, reduces reflections and increases contrast for indoor/outdoor industrial visibility.

Reliability & customization Industrial-grade metal enclosure and fanless design provide durability and long lifecycle availability. Customization options include panel brightness, cover glass treatment, display ports, mechanical mounting and regional power cord variants.

Connectivity & I/O options Standard VGA input is provided; HDMI and DVI are available as options. USB for touch interface, audio line-in and optional speakers can be configured depending on variant.

Technical specifications

• Model: W07T700-OFO1HB
• Brand: Winmate
• Display size: 7.0 inches
• Resolution: 1024 x 600
• Panel brightness: 1000 nits
• Contrast ratio: 800:1
• Viewing angles: 85,85,85,85
• Display colors: 16.7M
• Active area: 152.2144 x 85.92 mm
• Touch / glass: Resistive touch (optional); Protection glass no-touch (optional)
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch (optional)
• Audio: Audio line-in (3.5 mm) (optional); 2 x speakers (optional)
• Dimensions: 139.6 x 176 x 33 mm
• Mounting: VESA mount (default); Rear mount (optional)
• Enclosure: Metal
• Cooling: Fanless design
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Power rating: 12V DC input (AC-DC adapter 100~240V as accessory)
• Controls: 5 keys (-, +, Power, Esc, Enter)
• Certifications: CE, FCC
• Typical accessories: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws (varies by product)
