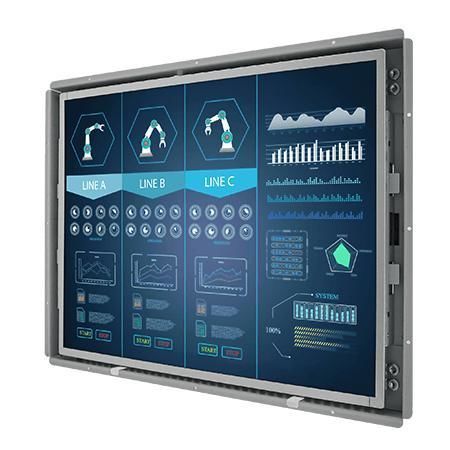

Resistive touch screen monitor R19L300-OFA1

for industrial machinesfor HMI interface19"

Overview
Winmate R19L300-OFA1 is a 19-inch open-frame display designed for industrial visualization, control rooms, equipment monitoring and OEM integration. It provides a compact open-frame construction with low power consumption, efficient heat dissipation and multiple mounting options for integration into ATMs, vending machines, kiosks and industrial enclosures.

Key features

• 19” display, 1280 x 1024 resolution
• VGA (default) and HDMI inputs
• Open-frame design with VESA and rear mount options
• Fanless metal enclosure and optional touch modules

Product highlights

• Low power operation and efficient thermal design suited to long-term use in production and embedded systems
• Flexible installation: rear mount and VESA mount options for kiosk and cabinet integration
• Open-frame form factor enabling bezel-less embedding while protecting electronic components
• Industrial-grade display module assembled for stable image performance and extended availability
• Configurable interfaces and panel/cover options to meet application requirements

CERTIFICATIONS

• CE
• FCC

Technical specifications

• Model: R19L300-OFA1
• Brand: Winmate
• Display size: 19.0 inches
• Resolution: 1280 x 1024
• Panel brightness: 400 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80
• Colors: 16.7M
• Active area: 376.32 x 301.06 mm
• Touch/Glass options: Resistive; Protection glass w/o touch; SAW (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IO ports: USB for touch (optional)
• Video inputs: VGA (default); HDMI (optional); DVI (optional)
• Audio: Line-in 3.5 mm (optional); 2 x speakers (optional)
• Mechanical dimensions: 445 x 355 x 56 mm
• Mounting: VESA mount / Rear mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 12V DC input (24V DC optional)
• Controls: 5 keys (-, +, Power, Esc, Enter)
• Accessories included: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws (varies)
• Optional accessory: Remote controller (varies)

Typical applications

• Industrial HMI and visualization
• Control rooms and monitoring stations
• Kiosks, ATMs and vending machines
• OEM integration in cabinets and equipment
