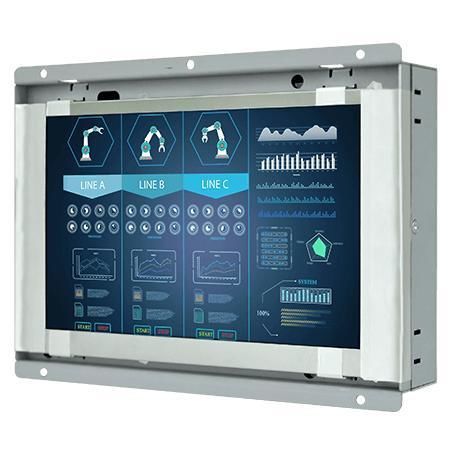

LCD monitor W07T700-OFA4

resistive touch screenindustrialPOS

Overview
Winmate W07T700-OFA4 is a 7.0-inch open frame display for industrial visualization, control rooms and embedded equipment. It provides a compact 7.0-inch LCD (800 x 480) with multiple video inputs and flexible mounting options for integration into kiosks, ATMs, vending machines, airport displays and other industrial housings.

Key features

• 7.0-inch LCD, 800 x 480 resolution
• VGA (standard) with optional HDMI and DVI inputs
• Open frame design with VESA and rear mounting options
• 400 nits brightness, 1000:1 contrast ratio

Product highlights and benefits
The open frame format simplifies mechanical integration into custom enclosures while the metal chassis and fanless design support reliable continuous operation in industrial environments. Low power consumption and effective heat dissipation make the display suitable for 24/7 use. Configurable I/O and mounting options facilitate deployment across OEM, kiosk and embedded applications.

Certifications

• CE
• FCC

Environment and reliability
Designed for typical industrial ambient conditions with non-condensing humidity tolerance (10%–90% RH). The fanless design reduces moving parts and maintenance needs, improving long-term reliability in production and control-room environments.

I/O and audio

• Video: 1 x VGA (standard), HDMI (optional), DVI (optional)
• USB: 1 x USB for touch interface (optional)
• Audio: 3.5 mm line-in (optional); 2 x speakers (optional)

Accessories (supplied and optional)

• Supplied: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: remote controller (varies by product)

Use cases
Suitable for OEMs, system integrators and industrial buyers needing a compact open frame monitor for embedded systems, kiosks, vending and other equipment where space, flexible mounting and multiple video inputs are required.

Technical specifications

• Model: W07T700-OFA4
• Display size: 7.0 inches
• Resolution: 800 x 480
• Panel brightness: 400 nits
• Contrast ratio: 1000:1
• Viewing angles: 80/80/80/80
• Colors: 16.2M colors
• Active area: 152.4 x 91.44 mm
• Touch / glass: Resistive touch optional; protection glass optional
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB: 1 x USB for touch (optional)
• Video ports: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• Audio: 3.5 mm line-in optional; 2 x speaker optional
• Mechanical dimensions: 190 x 138 x 34.3 mm
• Mounting: VESA mount / rear mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 12V DC input
• Control: 5 keys (-, +, Power, Esc, Enter)
