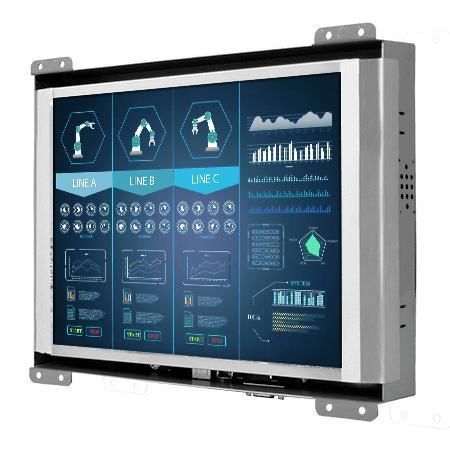

LCD monitor R10L600-OFP1TR

resistive touch screenindustrial10.4"

Product Overview
Winmate R10L600-OFP1TR is a 10.4” open-frame transflective display designed for industrial visualization, control rooms and equipment monitoring. It delivers stable hardware integration for embedded and rugged applications requiring long lifecycle availability, low power consumption and reliable operation in varied lighting conditions.

Key Features

• 10.4” display with 800 x 600 resolution
• Transflective LCD for improved readability in ambient light
• VGA input (default); HDMI and DVI optional
• Open-frame construction with VESA and rear mounting options
• High brightness panel (700 nits); fanless cooling and metal enclosure

Highlights & Benefits

• Low power consumption and effective heat dissipation for continuous operation in production environments
• Flexible installation: rear mount and VESA mount suitable for kiosks, ATMs, vending machines, airport displays and other integrated systems
• Open-frame monitor supplies the LCD and supporting structure without an external bezel, simplifying system integration
• High reliability for industrial applications with options for different housings and clean-room assembly for consistent quality
• Wide customization options: panel brightness, touch types (resistive, SAW), glass surface treatment, display ports and power input variants

Certifications

• CE
• FCC

Technical Specifications

• Display size: 10.4 inches
• Resolution: 800 x 600
• Panel brightness: 700 nits
• Contrast ratio: 400:1
• View angles: 70, 70, 70, 60
• Display color: 262K colors
• Active area: 211.2 x 158.4 mm
• Touch / glass options: Resistive touch (optional); Protection glass w/o touch (optional); SAW touch (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -10 °C to 60 °C
• IO ports: 1 x USB for touch (optional)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speaker optional
• Mechanical dimensions: 260 x 215 x 35 mm
• Mounting: VESA mount / Rear mount
• Enclosure: Metal
• Cooling: Fanless design
• Accessories included: VGA cable; HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies)
• Optional accessory: Remote controller (varies)
• Power rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
