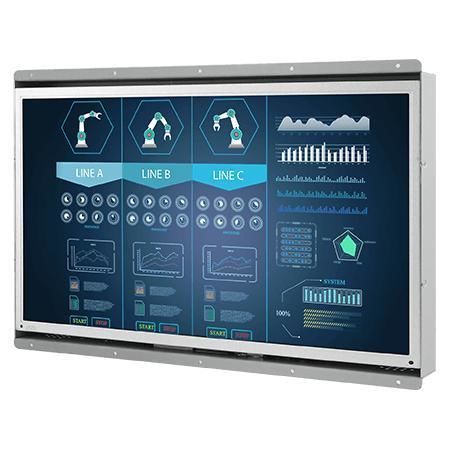

LCD monitor W15L100-OFA2

resistive touch screenfor digital signagefor industrial machines

Overview
Winmate W15L100-OFA2 is a 15.6 in open-frame industrial display for visualization, control rooms and equipment monitoring. It is designed for OEMs and system integrators who need stable hardware integration, low power operation and long lifecycle availability.

Key features

• 15.6 in LCD, 1366 x 768 resolution
• VGA and HDMI inputs (DVI optional)
• Open-frame design with VESA and rear mounting options
• Optional touch (resistive, SAW) and protection glass

Product details

• Low power consumption and effective heat dissipation for continuous use in production environments
• Rear and VESA mounting allow flexible integration into kiosks, cabinets and embedded systems
• Open-frame construction provides structural support for the LCD without a full enclosure to simplify OEM integration
• Display modules assembled in clean-room conditions to facilitate further processing and customization

Ports & customization

• Video: 1 x VGA (standard), 1 x HDMI (optional), 1 x DVI (optional)
• USB: 1 x USB for touch controller (optional)
• Audio: line-in 3.5 mm (optional) and 2 x speakers (optional)
• Customization options: product size, customer logo, LCD brightness, glass surface treatment, display ports and regional power plug types

Applications & reliability

• Suitable for ATMs, vending machines, casino displays, airport information panels, mall kiosks, control room and industrial HMI applications
• Operating humidity 10%–90% RH (non‑condensing); operating temperature 0°C to 50°C; storage -10°C to 60°C
• Certifications: CE, FCC

Specifications

• Model: W15L100-OFA2
• Display size: 15.6 in
• Resolution: 1366 x 768
• Brightness: 400 nits; Contrast: 500:1
• Viewing angles: 85°/85°/80°/80°; Colors: 16.7M
• Active area: 344.232 x 195.536 mm
• Touch/glass options: resistive touch, protection glass (no touch), SAW touch (optional)
• Power: 12V DC (standard), 24V DC (optional)
• Control: 5 keys (-, +, Power, Esc, Enter)
• Accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product); remote optional
