LCD monitor W24L100-OFS1

resistive touch screenfor displaysfor digital signage

Overview

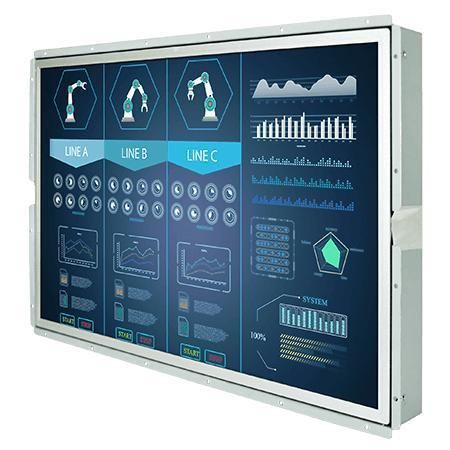

Winmate W24L100-OFS1 is a 24.0-inch open frame display for industrial visualization, control rooms and equipment monitoring. It is intended for OEMs and system integrators requiring long lifecycle availability and easy embedded integration.

Key features

• 24.0-inch display, 1920 x 1200 resolution, 300 nits, 1000:1 contrast
• VGA input (default); HDMI and DVI optional
• Open frame design with VESA and rear mounting; metal enclosure
• Fanless cooling and low power consumption; 12V DC standard, 24V DC optional
• Optional touch: resistive, SAW; protection glass variants

Applications & mounting
Suitable for kiosks, ATMs, vending machines, airport information displays, control rooms and other embedded display systems. Multiple mounting options (rear mount and VESA) allow flexible integration into equipment and enclosures.

Reliability & customization
Engineered for continuous industrial operation with effective heat dissipation and a metal chassis. Configurable options include panel brightness, glass surface treatment, touch or non-touch glass, display ports and power input to meet system requirements.

IO, certifications & accessories

• Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• USB: 1 x USB for touch (optional); Audio line-in 3.5 mm (optional); 2 x speakers (optional)
• Certifications: CE, FCC
• Accessories: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws (varies)

Technical specifications

• Display size: 24.0 inches; Resolution: 1920 x 1200; Active area: 518.4 x 324.0 mm; Display color: 16.7M
• Panel brightness: 300 nits; Contrast ratio: 1000:1; View angles: 89/89/89/89
• Touch / Glass: Resistive touch (optional); Protection glass without touch (optional); SAW touch (optional)
• Operating humidity: 10% to 90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• Mechanical: 570 x 375 x 58 mm; Mounting: VESA / Rear mount; Enclosure: Metal; Cooling: Fanless design
• Power: 12V DC input (standard); 24V DC input (optional)
• Control: 5 keys (-, +, Power, Esc, Enter)
