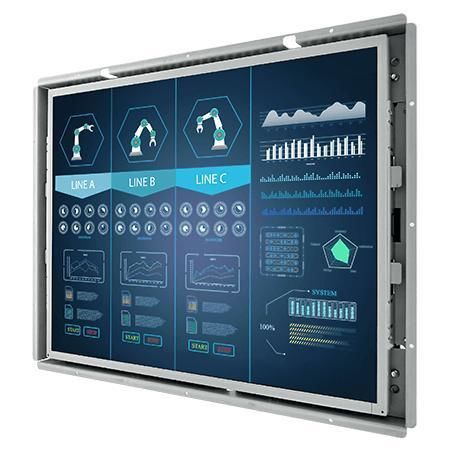

LCD monitor R19L300-OFM2TR

resistive touch screenfor industrial machinesfor HMI interface

Product summary
Winmate R19L300-OFM2TR is a 19-inch open-frame transflective display intended for industrial visualization, control rooms, equipment monitoring and embedded integration. It is designed for stable hardware integration, reliable field operation and extended product lifecycle support for OEMs and system integrators.

Key features

• 19" diagonal display with 1280 x 1024 resolution
• Transflective panel for improved visibility under varied lighting
• VGA (standard) with optional HDMI and DVI inputs
• Open-frame design with VESA and rear mounting options
• Front protection to IP65 level for industrial visualization environments (front IP65 applies to product family)

Overview and benefits

• Low power consumption and effective heat dissipation for continuous operation in production and industrial facilities.
• Rear and VESA mounting options simplify integration into kiosks, ATMs, vending machines, control cabinets and other equipment.
• Open-frame architecture supplies the LCD and supporting structure without external enclosure or bezel to ease embedded installation.
• Metal enclosure and fanless design deliver long-term reliability; available with optional touch and protection glass configurations to suit application requirements.
• Customization options: panel brightness, glass surface treatment, display ports, power plug styles and customer logo (availability varies).

Certifications

• CE
• FCC

Accessories (included / optional)

• Included: 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: remote controller (varies by product)

Technical specifications

• Model: R19L300-OFM2TR
• Size: 19.0 inches
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 2000:1
• View angles: 89/89/89/89
• Display color: 16.7M colors
• Active area: 376.32 x 301.06 mm
• Touch / Glass options: Resistive touch (optional); Protection glass w/o touch (optional); SAW touch (optional)
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch (optional)
• Audio: audio line-in (3.5 mm) (optional); 2 x speaker (optional)
• Power rating: 12V DC in (standard); 24V DC in (optional)
• Dimension: 445 x 355 x 56 mm
• Weight: 4.7 kg
• Mounting: VESA mount / Rear mount
• Enclosure: Metal
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Buttons / Controls: 5 keys: -, +, Power, Esc, Enter
