LCD monitor W43L300-OFA2HB

for digital signagefor industrial machinesfor HMI interface

Overview

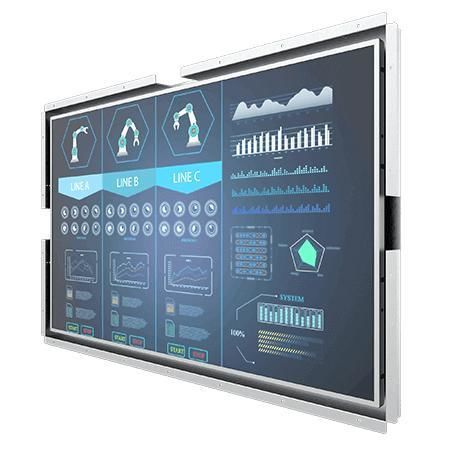

Winmate W43L300-OFA2HB is a 42.5-inch Open Frame High Brightness Display designed for industrial visualization, control rooms and equipment monitoring. It supports continuous 24/7 operation, metal open-frame enclosure, and flexible mounting options for OEM and system integrator applications.

Key features

• 42.5" diagonal, 1920 x 1080 resolution
• VGA input (default); HDMI and DVI optional
• Open frame design with VESA and rear mount support
• High brightness panel: 1500 nits
• Fanless design and 24V DC power input

Product details

• Low power consumption and effective heat dissipation for reliable long-term use in production environments.
• Multiple mounting solutions (VESA and rear) for embedded installations and kiosks.
• Open frame monitor provides the supporting structure without a full enclosure, suitable for ATMs, vending machines, casino screens, airport information displays and kiosks.
• Optical bonding with anti-reflective protection glass reduces reflections and improves readability and contrast under direct sunlight or high humidity.
• Display port and accessory customization available (panel brightness, glass treatment, I/O options) to meet OEM requirements.

Certifications

• CE
• FCC

Accessories and options

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product).
• Optional: DVI, audio line-in, speakers, remote controller and other accessories (varies).

Technical specifications

• Model: W43L300-OFA2HB
• Size: 42.5 inches
• Resolution: 1920 x 1080
• Panel brightness: 1500 nits
• Contrast ratio: 4000:1
• View angles: 89/89/89/89
• Display color: 16.7M Colors
• Active area: 940.896 x 529.254 mm
• Touch / Glass: Protection Glass (Optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• Video I/O: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio I/O: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Dimensions (W x H x D): 1029.6 x 618.1 x 75 mm
• Mounting: VESA Mount / Rear Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Power rating: 24V DC input
• Control buttons: 5 Keys: -, +, Power, Esc, Enter
• Accessories included: VGA cable, HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws (varies)
