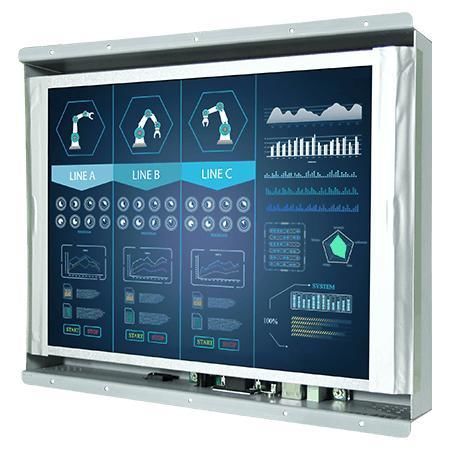

LCD monitor R12T600-OFL1

resistive touch screenfor displaysfor digital signage

Overview
Winmate R12T600-OFL1 is a 12.1-inch open frame display engineered for industrial visualization, control rooms, equipment monitoring and OEM integration. The unit targets long-term continuous operation with low power consumption, efficient heat dissipation and flexible mounting for embedded applications.

Key features

• 12.1-inch LCD, 800 x 600 (XGA) resolution
• Video inputs: 1 x VGA (default); HDMI and DVI optional
• Open frame design with VESA and rear-mount options
• Metal enclosure and fanless thermal design
• Touch/glass options: resistive touch, protection glass (no touch), SAW (optional)

Certifications

• CE
• FCC

Product highlights

• Optimized for low power consumption and effective heat dissipation to support long-term operation in production and industrial facilities
• Rear and VESA mounting enable flexible installation in kiosks, ATMs, vending machines, control panels and OEM equipment
• Open-frame monitor provides the LCD and supporting structure without a full bezel for easier integration into machinery and enclosures
• Multiple configuration options (panel brightness, glass treatment, ports, touch variants) to match different industrial requirements

Applications

• Industrial visualization and control rooms
• Equipment monitoring and embedded OEM systems
• ATMs, kiosks, vending machines, casino monitors, airport information displays and similar integrated installations

Technical specifications

• Model: R12T600-OFL1
• Display size: 12.1 inches
• Resolution: 800 x 600
• Panel brightness: 450 nits
• Contrast ratio: 700:1
• Viewing angles: 80 / 80 / 75 / 65 (°)
• Display colors: 16.2M
• Active area: 246 x 184.5 mm
• Touch / glass options: Resistive touch (optional); Protection glass w/o touch (optional); SAW touch (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• IO ports:
  • USB: 1 x USB for touch (optional)
  • Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
  • Audio: audio line in (3.5 mm) (optional); 2 x speaker (optional)
• Mechanical:
  • Dimensions: 300 x 250 x 40 mm
  • Weight: 1.9 kg
  • Mounting: VESA mount / Rear mount
  • Enclosure: Metal
  • Cooling: Fanless design
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (optional)
• Power rating: 12V DC input (24V DC optional)
• Control / buttons: 5 keys: -, +, Power, Esc, Enter
