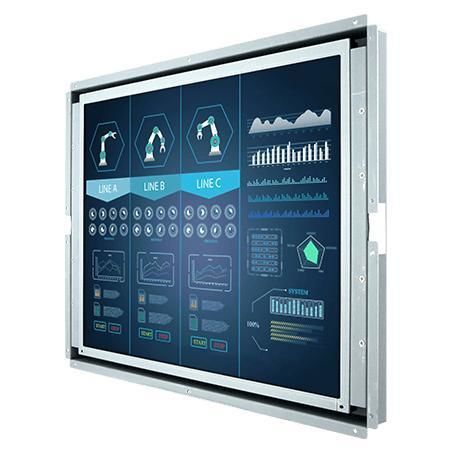

TFT-LCD monitor S17L500-OFA1TR

resistive touch screenfor industrial machinesfor HMI interface

Overview
Winmate S17L500-OFA1TR is a 17-inch open-frame transflective display designed for industrial visualization, control rooms, equipment monitoring and OEM integration. It targets applications that require stable hardware integration, extended availability and reliable operation in embedded or mission-critical environments.

Key features

• 17" TFT LCD, resolution 1280 x 1024
• Transflective panel for improved readability under varying ambient light
• VGA (standard); HDMI and DVI optional
• Open-frame design with VESA and rear mounting support
• 400 nits panel brightness, 1000:1 contrast ratio

Low power consumption
Engineered for low power use with optimized heat dissipation to support continuous operation in production lines, control rooms and embedded systems.

Mounting and integration
Supports multiple mounting options including rear and VESA mounting for flexible installation in kiosks, ATMs, vending machines, information displays and OEM enclosures.

Open frame design
The open-frame format supplies the LCD and supporting structure without an enclosure or bezel, enabling direct integration into custom housings and the creation of tailored bezels when required.

High reliability and image quality
Designed for industrial use with robust construction, consistent image performance and clean-room assembly for downstream processing and integration.

Display ports and customization
Available customization options include touch technology choices (resistive), protective glass variants, panel brightness adjustments, selectable display ports and power input options. IO and accessory configurations vary by model variant.

CERTIFICATIONS

• CE
• FCC

Characteristics / technical specifications

• Model: S17L500-OFA1TR
• Size: 17.0 inches
• Touch / Glass: Resistive touch screen (optional); Protection glass without touch (optional)
• Resolution: 1280 x 1024
• Panel Brightness: 400 nits
• Contrast Ratio: 1000:1
• View Angles: 85° / 85° / 80° / 80° (L/R/U/D)
• Display Color: 16.2M Colors
• Active Area: 337.920 x 270.336 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports: 1 x USB for touch (optional)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speaker (optional)
• Accessories (typical): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional, varies by product)
• Power Rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
