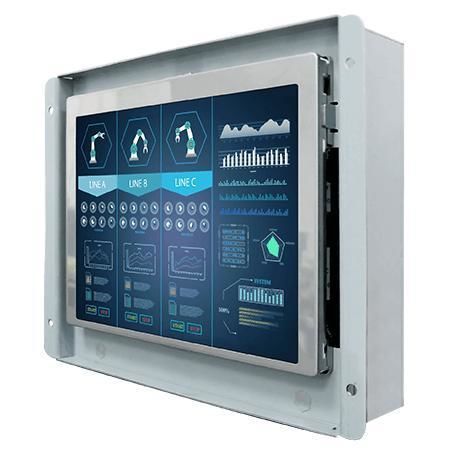

LCD monitor R05T100-OFD1HB

resistive touch screenfor HMI interface5.7"

Overview
Winmate R05T100-OFD1HB is a 5.7-inch open frame high-brightness display designed for industrial visualization, control rooms and equipment monitoring. It is intended for OEMs, system integrators and industrial buyers needing compact, long-lifecycle displays for embedded or mission-critical applications.

Key Features

• 5.7” display, 640 x 480 resolution
• VGA input (default); HDMI and DVI optional
• Open frame design for panel-mount and VESA integration
• High-brightness panel (1000 nits configuration)
• Fanless metal housing with aluminum bezel

Product highlights and usage
Low power consumption and effective heat dissipation enable reliable 24/7 operation in production and kiosk environments. The open-frame format supplies the LCD and supporting structure without a full enclosure, allowing compact OEM integration into ATMs, vending machines, casino displays, airport information panels, retail kiosks and other embedded systems. High-brightness variants use optical bonding (protective anti-reflective glass bonded to the panel) to remove the air gap, reduce reflections and improve contrast for better readability under strong ambient light. Customization options include panel brightness, cover glass treatment, display ports and regional power plug or logo customization.

Applications

• Industrial visualization and control rooms
• Equipment monitoring and machine HMIs
• Kiosks, ATMs and vending machines
• Airport/retail information displays and embedded OEM systems

Technical Specifications

• Model: R05T100-OFD1HB
• Size: 5.7 inches
• Resolution: 640 x 480
• Panel Brightness: 1000 nits (high-brightness option)
• Contrast Ratio: 1200:1
• Viewing Angles: 85, 85, 85, 85
• Display Color: 262K Colors
• Active Area: 115.2 x 86.4 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• Touch / Glass: Resistive touch optional; protection glass without touch optional
• USB: 1 x USB for touch (optional)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Line-in (3.5mm) optional; 2 x speakers optional
• Dimensions: 168.4 x 132.8 x 38.6 mm
• Mounting: Panel mount / VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Accessories included: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (varies)
• Power: 12V DC input
• Controls: 5 keys: -, +, Power, Esc, Enter
