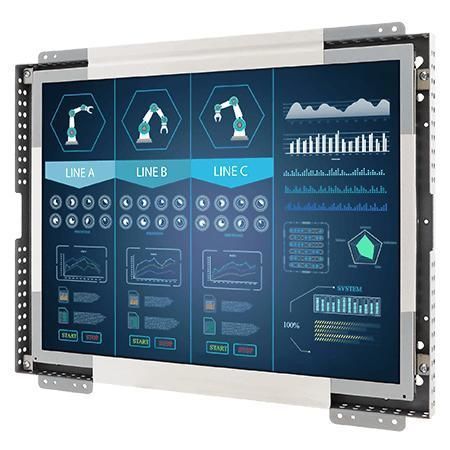

LCD monitor R15L100-OFC3HB

resistive touch screenindustrial15"

Overview
Winmate R15L100-OFC3HB is a 15.0-inch open-frame high brightness display engineered for industrial visualization, control rooms, equipment monitoring and kiosk/embedded applications. It is built for continuous operation, high readability in bright environments, flexible mounting and long lifecycle support for OEMs and integrators.

Key features

• 15.0 inch display, 1024 × 768 resolution
• Panel brightness: 1000 nits
• Open-frame design for easy integration
• VESA mount and rear mount support
• VGA input standard; HDMI and DVI optional
• Fanless design and metal enclosure for industrial environments

Certifications

• CE
• FCC

Product highlights

• Low power consumption and effective heat dissipation for reliable continuous operation in production and industrial facilities
• Multiple mounting options suitable for kiosks, ATMs, vending machines, control rooms and embedded systems
• Optical bonding and anti-reflective glass reduce reflections and improve contrast for better readability under direct light and in humid conditions
• Industrial-grade assembly and materials for high reliability in mission-critical applications
• Customization options: panel brightness, touch or protection glass, display ports, customer logo and regional power options

Technical specifications

• Display size: 15.0 inches
• Resolution: 1024 × 768
• Brightness: 1000 nits
• Contrast ratio: 2000:1
• Viewing angles: 88/88/88/88
• Colors: 16.2M
• Active area: 304.1 × 228.1 mm
• Touch / glass options: resistive touch, protection glass (no touch), SAW (optional)
• IO ports: 1 × VGA (default), 1 × HDMI (optional), 1 × DVI (optional); 1 × USB for touch (optional)
• Audio: line-in 3.5 mm (optional); 2 × speakers (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Mechanical dimensions: 357.6 × 292 × 49.8 mm
• Mounting: VESA mount / rear mount
• Enclosure: metal, fanless design
• Power input: 12V DC (24V DC optional)
• Accessories: VGA cable, HDMI cable, 100–240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Control: 5 keys (−, +, Power, Esc, Enter)
