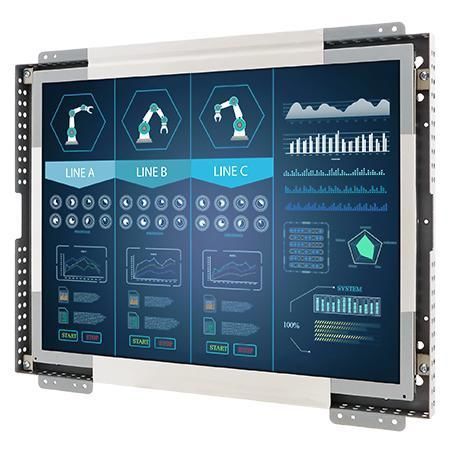

LCD monitor R15L100-OFA1TR

touch screenindustrialfor indoor use

Overview Winmate R15L100-OFA1TR is a 15.0-inch open-frame transflective display for industrial visualization, control rooms and equipment monitoring. It is designed for long-term operation in embedded or rugged environments and supports fanless cooling, a metal enclosure and multiple mounting options including VESA and rear mount.

Key features

• 15.0-inch display, 1024 x 768 (XGA)
• Transflective panel with 610 nits brightness
• VGA input (standard) and HDMI input (optional)
• Open-frame design for equipment integration
• VESA mount and rear mount options
• 12V DC input (24V optional); fanless metal enclosure

Product details

• Low power consumption and effective heat dissipation for continuous operation in production environments
• Flexible installation: rear mount and VESA mount for kiosks, ATMs, vending machines, airport displays and other embedded applications
• Open-frame monitor: LCD with supporting frame to protect electronics without a full bezel or housing, facilitating integration into OEM equipment
• Customization: panel brightness, glass surface treatment, display ports, customer logo and country-specific power plugs available on request
• IO options: USB for touch (optional), VGA (default), HDMI and DVI (optional); audio line-in and speakers optional
• Control: 5 front keys (-, +, Power, Esc, Enter)

Certifications CE, FCC

Technical specifications

• Size: 15.0 inches
• Resolution: 1024 x 768
• Panel Brightness: 610.0 nits
• Contrast Ratio: 700:1
• View Angles: 88,88,88,88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Touch / Glass (options): Resistive touch; Protection glass w/o touch; SAW touch (optional)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IO Ports: 1 x USB for touch (optional); Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional); Audio: audio line-in (3.5mm) (optional); 2 x speaker (optional)
• Mechanical: 358 x 293 x 53 mm; Mounting: VESA mount / rear mount; Enclosure: metal; Cooling: fanless
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100-240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: remote controller (optional, varies by product)
• Power Rating: 12V DC input (24V DC input optional)
