LCD monitor W18L100-OFA2HB
resistive touch screenfor HMI interface18.5"

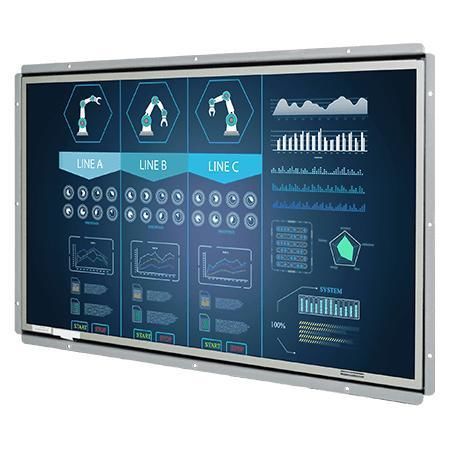

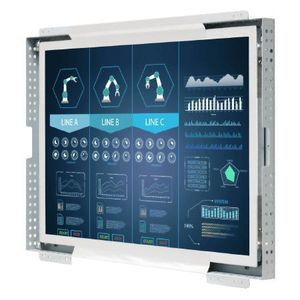

LCD monitor - W18L100-OFA2HB - Winmate, Inc. - resistive touch screen / for HMI interface / 18.5"

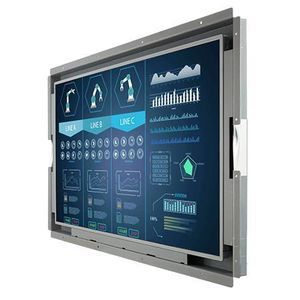

LCD monitor - W18L100-OFA2HB - Winmate, Inc. - resistive touch screen / for HMI interface / 18.5"

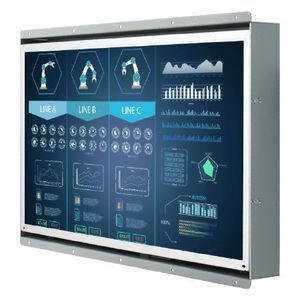

LCD monitor - W18L100-OFA2HB - Winmate, Inc. - resistive touch screen / for HMI interface / 18.5" - image - 2

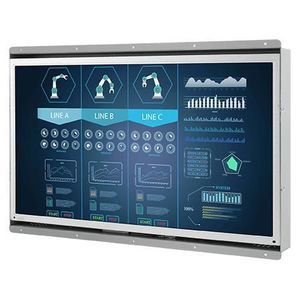

LCD monitor - W18L100-OFA2HB - Winmate, Inc. - resistive touch screen / for HMI interface / 18.5" - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
LCD, resistive touch screen
Applications
for HMI interface
Display size
18.5"
Resolution
1366 x 768
Mounting
VESA mounting, open frame, for integration
Other characteristics
HDMI, USB, VGA, high-brightness, DVI port, fanless, widescreen
Width

451.4 mm
(17.7717 in)

Height

278 mm
(10.9449 in)

Thickness

48 mm
(1.89 in)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Description

Product summary
  • Winmate W18L100-OFA2HB — 18.5 inches open-frame high-brightness monitor designed for industrial visualization, control rooms and equipment monitoring; suitable for OEM integrations and 24/7 operation with flexible mounting and multiple video inputs.


Key features
  • 18.5 inches, 1366 x 768 resolution
  • VGA input (default); HDMI and DVI optional
  • Open-frame design with VESA and rear mounting options
  • High brightness: 1000 nits; anti-reflective / optical bonding available
  • Fanless metal enclosure for reliable industrial operation


Overview
  • Low power consumption and effective heat dissipation enable long-term continuous use in production and control environments.
  • Open-frame construction provides the LCD and supporting structure without an outer bezel, enabling integration into custom enclosures, kiosks, ATMs and OEM housings.
  • Multiple mounting solutions (rear mount and VESA) allow flexible installation in kiosks, vending machines, airport displays and industrial panels.
  • High-brightness panel with optional anti-reflective, optical-grade bonded cover glass improves readability under high ambient light and reduces reflections while increasing effective contrast.
  • Designed for industrial reliability with rugged metal enclosure, fanless cooling and optional touch or protection glass configurations.


Product highlights & customization
  • Optional resistive touch screen or protection glass without touch; customization available for glass treatment (AR/AG) and brightness levels.
  • Multiple signal interface options (VGA default; HDMI/DVI optional) and USB touch interface when touch is fitted.
  • Accessories included: VGA & HDMI cables, 100~240V AC-to-DC adapter, power cord, manual and VESA screws; remote controller optional.


Certifications
  • CE, FCC


Technical specifications
  • Model: W18L100-OFA2HB
  • Brand: Winmate
  • Display size: 18.5 inches
  • Resolution: 1366 x 768
  • Panel brightness: 1000 nits
  • Contrast ratio: 1000:1
  • Viewing angles: 85/85/80/80
  • Display color: 16.7M colors
  • Active area: 413.3 x 234 mm
  • Touch / Glass: Resistive touch (optional); Protection glass without touch (optional)
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -10°C to 60°C
  • Certifications: CE, FCC
  • IO ports: 1 x USB for touch (optional)
  • Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
  • Audio: Audio line-in (3.5 mm) (optional); 2 x speaker (optional)
  • Mechanical dimensions: 451.4 x 278 x 48 mm
  • Mounting: VESA mount / Rear mount
  • Enclosure: Metal
  • Cooling system: Fanless design
  • Accessories included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
  • Optional accessory: Remote controller (optional, varies by product)
  • Power rating: 12V DC input (24V DC optional)
  • Controls / Buttons: 5 keys: -, +, Power, Esc, Enter
