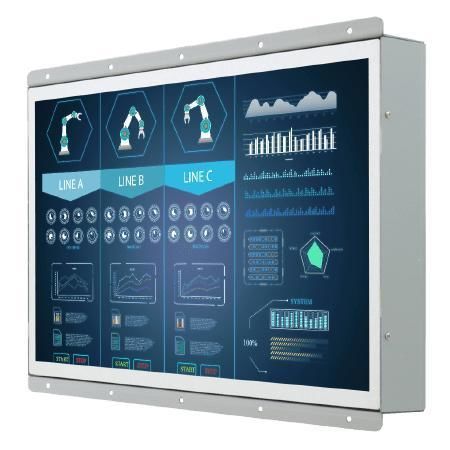

LCD monitor W12L100-OFM9

resistive touch screenindustrialfor displays

Overview
Winmate W12L100-OFM9 is a 12.1-inch open-frame display designed for industrial visualization, control rooms and equipment monitoring. It delivers low power consumption, effective heat dissipation and reliable operation for continuous 24/7 use. The open-frame design supports rear and VESA mounting for integration into kiosks, ATMs, vending machines and embedded systems.

Key Features

• 12.1" diagonal, 1280 x 800 resolution, 400 nits
• VGA input standard; HDMI and DVI optional
• Open-frame construction with VESA and rear mounting options
• Optional touch/protection glass: resistive, SAW or protection glass

Product Highlights

• Low power design and effective heat dissipation for prolonged operation
• Flexible rear and VESA mounting for OEM and kiosk integration
• Open-frame configuration provides LCD module with supporting structure ideal for embedded installations
• Optional high-brightness panels and optical bonding for improved readability in bright environments
• Variants available for panel brightness, glass treatment and I/O configuration

Certifications

• CE
• FCC

Technical specifications

• Model: W12L100-OFM9
• Display size: 12.1 inches
• Resolution: 1280 x 800
• Panel brightness: 400 nits
• Contrast ratio: 1000:1
• Viewing angles: 88/88/88/88°
• Display colors: 16.2M
• Active area: 261.12 x 163.2 mm
• Touch / Glass options: Resistive touch (optional); Protection glass without touch (optional); SAW touch (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IO ports: 1 x USB for touch (optional)
• Video ports: 1 x VGA (standard); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speaker (optional)
• Power: 12V DC input (24V DC optional)
• Accessories included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
• Mounting: Rear mounting and VESA mounting supported
