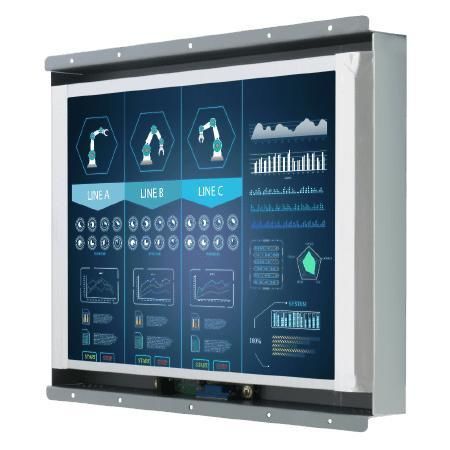

LCD monitor R12L600-OFM2TR

resistive touch screenPCAP capacitive touch screenindustrial

Overview
Winmate R12L600-OFM2TR is a 12.1-inch open frame transflective display module for industrial visualization, control rooms, equipment monitoring and POS/POI integrations. It combines a modular video controller with options for front-frame materials, touch or glass types and flexible mounting for embedded or kiosk installations.

Key features

• 12.1” transflective open frame LCD, 1024 x 768 resolution
• Panel brightness 600 nits and contrast ratio 700:1
• Standard VGA input; optional HDMI and DVI
• Multiple front-frame options (aluminum or stainless steel) and VESA/rear mount support
• Touch/glass choices: resistive, SAW, protection glass or PCAP (model dependent)
• Fanless metal enclosure and low power consumption for continuous operation

Certifications

• CE
• FCC

Typical applications

• Industrial machine HMIs and control panels
• Control rooms and equipment monitoring
• POS / POI terminals, kiosks and self-service machines
• ATMs, vending machines, casino monitors, airport information displays

Customization & Accessories

• Customization: product size, customer logo, panel brightness, glass surface treatment, display ports and power options
• Included accessories (may vary): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws
• Optional accessories: remote controller, additional IO or cable sets

Technical specifications

• Display size: 12.1 inches
• Model: R12L600-OFM2TR
• Resolution: 1024 x 768
• Panel brightness: 600 nits
• Contrast ratio: 700:1
• Viewing angles: 80/80/70/70 (typ.)
• Colors: 16.2M
• Active area: 261.12 x 163.2 mm
• Touch/Glass options: Resistive, Protection Glass (no touch), SAW, PCAP (depending on variant)
• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IO ports: USB for touch (optional)
• Video inputs: VGA (default); HDMI, DVI (optional)
• Audio: Line in (3.5 mm) optional; 2 x speakers optional
• Mechanical dimensions: 300 x 250 x 40 mm
• Mounting: VESA mount / Rear mount
• Enclosure: Metal, fanless design
• Power: 12 V DC input (24 V DC optional; some configs support 10–32 VDC)
• Controls: 5 keys (-, +, Power, Esc, Enter)
• Weight: approx. 3.5–5.1 kg depending on configuration
