LCD monitor R15L100-OFA1

resistive touch screenfor digital signagefor HMI interface

Overview

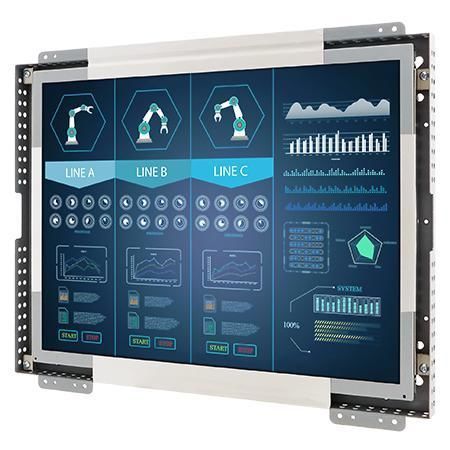

Winmate R15L100-OFA1 is a 15-inch open-frame industrial display for visualization, control rooms and equipment monitoring. It integrates a 1024 x 768 panel with VESA rear-mount support, low power design and configurable I/O and touch options.

Key features

• 15” LCD, 1024 x 768 resolution
• Panel brightness 350 nits, contrast ratio 800:1
• VGA input (default); HDMI and DVI optional
• Open-frame construction with VESA mounting
• Optional resistive or SAW touch modules

Applications
Suitable for integration in ATMs, vending machines, kiosks, casino monitors, airport information displays, HMI panels and other embedded systems requiring a compact open-frame installation.

Certifications

• CE
• FCC

Technical specifications

• Size: 15.0 inches
• Resolution: 1024 x 768
• Panel brightness: 350 nits
• Contrast ratio: 800:1
• View angles: 80/80/70/80
• Display color: 16.2M Colors
• Active area: 304.128 x 228.096 mm
• Touch / Glass options: Resistive, SAW or protection glass (optional)
• Video: 1 x VGA (default); HDMI and DVI optional
• USB: 1 x USB for touch (optional)
• Audio: line-in 3.5mm; 2 x speakers (optional)
• Power: 12V DC input (standard); 24V DC optional
• Operating temp: 0°C to 50°C; Storage: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Control: 5 keys: -, +, Power, Esc, Enter
• Accessories: VGA/HDMI cables, 100~240V AC-DC adapter, power cord, manual, VESA screws

Customization & mounting
Multiple customization options available including panel brightness, glass surface treatment, I/O configuration and customer logo. Rear and VESA mounting options support installation into enclosures, kiosks and machine panels.
