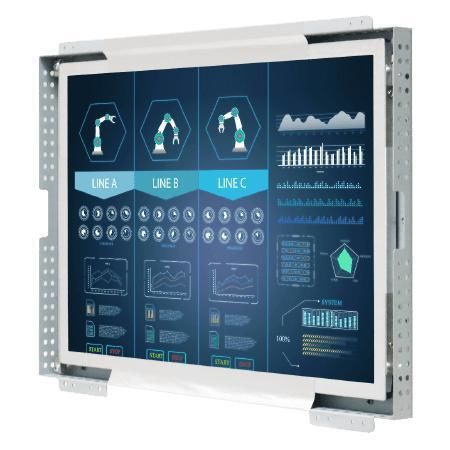

LCD monitor R15L600-OFC3

resistive touch screenindustrial15"

Overview
The Winmate R15L600-OFC3 is a 15-inch open-frame display for industrial visualization, control rooms and equipment monitoring. It provides stable hardware integration, long lifecycle availability and energy-efficient operation suited to OEMs, system integrators and embedded applications.

Key Features

• 15" LCD, 1024 x 768 resolution
• VGA (default) and HDMI (optional) inputs
• Open-frame design with VESA mount for flexible integration
• Optional touch technologies and protective glass variants

Product Details

• Low power consumption and effective heat dissipation for continuous operation in production environments.
• Multiple mounting options: rear mounting and VESA mounting for panel or cabinet integration.
• Open-frame monitor structure allows integration without enclosure or bezel — suitable for ATMs, vending machines, kiosks, casino monitors and airport displays.
• Industrial-grade design for reliable operation in factory and embedded systems; available in various sizes, housings and optional features to meet application requirements.
• Customization options include product size, customer logo, LCD brightness, glass surface treatment, display ports and regional power plug styles.

Certifications

• CE
• FCC

IO Ports

• USB: 1 x USB for touch screen (optional)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in (3.5 mm) (optional); 2 x speaker (optional)

Technical specifications

• Size: 15.0 inches (Active area: 304.1 x 228.1 mm)
• Touch / Glass: Resistive touch (optional); Protection glass without touch (optional); SAW touch (optional)
• Resolution: 1024 x 768
• Panel brightness: 300 nits
• Contrast ratio: 2000:1
• View angles: 88, 88, 88, 88
• Display colors: 16.2M colors
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Power rating: 12V DC input (standard); 24V DC input (optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
• Included accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (varies)
