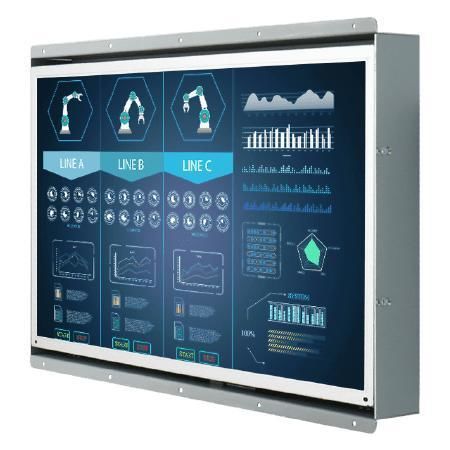

LCD monitor W15L100-OFA2HB

resistive touch screenfor digital signagefor industrial machines

Overview
Winmate W15L100-OFA2HB is a 15.6-inch open-frame high-brightness LCD touch display engineered for industrial visualization, control rooms and embedded equipment monitoring. It supports continuous 24/7 operation with a high-brightness panel and multiple integration options suitable for kiosks, ATMs, vending machines, casino displays and airport information systems.

Key Features

• 15.6" diagonal LCD, 1366 x 768 resolution
• Open-frame design for straightforward integration and mounting
• High brightness panel (1300 nits) for improved readability in bright environments
• VGA input (default); optional HDMI and DVI
• VESA mount and rear-mount support

Product Details

• Low power consumption: Designed for energy-efficient operation and effective heat dissipation to support long-term continuous use in production and control environments.
• Mounting options: Rear and VESA mounting options allow flexible installation in embedded systems and kiosks.
• Open-frame monitor: LCD module with support structure without full enclosure or bezel for easy integration into OEM equipment.
• High brightness & optical bonding: Optical-grade bonding between cover glass and display reduces reflections, increases contrast and enhances readability under high ambient light or humid conditions.
• High reliability: Industrial-grade assembly and metal enclosure provide stable operation in factory and control-room environments.
• Image quality: Engineered display modules assembled in controlled environments to deliver accurate colors and stable image performance.
• Customization: Options for panel brightness, glass surface treatment, touch technology, display ports and regional power plugs.

Applications

• Industrial HMI and control-room displays
• Kiosks, ATMs and vending machines
• Airport information systems, retail and casino displays

Technical specifications

• Model: W15L100-OFA2HB
• Brand: Winmate
• Size: 15.6 inches
• Resolution: 1366 x 768
• Panel brightness: 1300 nits
• Contrast ratio: 500:1
• Viewing angles: 85 / 85 / 80 / 80
• Display color: 16.7M colors
• Active area: 344.232 x 195.536 mm
• Touch / glass options: Resistive touch (optional); Protection glass without touch (optional); SAW touch (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB: 1 x USB for touch (optional)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5mm) (optional); 2 x speaker (optional)
• Dimensions: 366.3 x 248 x 40 mm
• Mounting: VESA mount / Rear mount
• Enclosure: Metal
• Cooling: Fanless design
• Accessories (included): VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional)
• Power rating: 12V DC in; 24V DC in (optional)
• Control buttons: 5 keys: -, +, Power, Esc, Enter
