LCD monitor R12L600-OFM2
resistive touch screenindustrialPOS

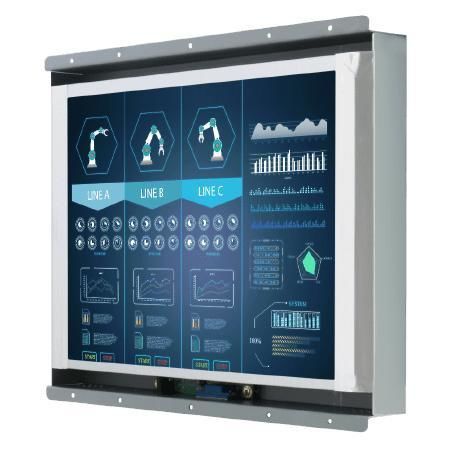

LCD monitor - R12L600-OFM2 - Winmate, Inc. - resistive touch screen / industrial / POS
LCD monitor - R12L600-OFM2 - Winmate, Inc. - resistive touch screen / industrial / POS
LCD monitor - R12L600-OFM2 - Winmate, Inc. - resistive touch screen / industrial / POS - image - 2
LCD monitor - R12L600-OFM2 - Winmate, Inc. - resistive touch screen / industrial / POS - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
LCD, resistive touch screen
Applications
industrial, for digital signage, for displays, POS, for HMI interface
Display size
12.1"
Resolution
1024 x 768
Mounting
VESA mounting, open-frame
Other characteristics
HDMI, USB, VGA, DVI port, fanless, customizable
Width

300 mm
(11.811 in)

Height

250 mm
(9.8425 in)

Thickness

40 mm
(1.575 in)

Description

Product overview
The Winmate R12L600-OFM2 is a 12.1-inch open frame display engineered for industrial visualization, control rooms and equipment monitoring. It supports stable hardware integration and long lifecycle availability for embedded and OEM applications.

Key features
  • 12.1 inches, 1024 x 768 (XGA)
  • VGA input (standard), HDMI and DVI optional
  • Open frame design with metal enclosure
  • VESA and rear mounting options


Low power consumption
Designed for low power draw and effective heat dissipation to ensure continuous operation in production and industrial environments.

Mounting options
Supports multiple installation methods including rear panel mounting and standard VESA mounting for flexible OEM integration.

Open frame monitor
The open frame form factor provides a supporting structure for the LCD without a full bezel or enclosure, facilitating integration into kiosks, ATMs, vending machines, airport information displays and other embedded systems.

Reliability for industrial applications
Built for long-term availability with fanless cooling and metal housing to meet reliability requirements in industrial and embedded use cases.

Image quality
Industrial-grade panel with 500 nits brightness, 1000:1 contrast ratio and 16.2M colors for clear visualization of critical information.

Display ports and customization
Offers customization options such as touch or non-touch glass, panel brightness, I/O configuration and power input variants to meet OEM specifications.

Certifications
  • CE
  • FCC


Technical specifications
  • Model: R12L600-OFM2
  • Brand: Winmate
  • Display size: 12.1 inches
  • Resolution: 1024 x 768
  • Panel brightness: 500 nits
  • Contrast ratio: 1000:1
  • Viewing angles: 89/89/89/89
  • Display color: 16.2M Colors
  • Active area: 245.76 x 184.32 mm
  • Touch / glass options: Resistive, SAW, Protection glass (non-touch) - optional
  • Video inputs: 1 x VGA (default); HDMI (optional); DVI (optional)
  • IO: 1 x USB for touch (optional)
  • Audio: Line-in 3.5 mm (optional); 2 x speakers (optional)
  • Mechanical dimensions: 300 x 250 x 40 mm
  • Mounting: VESA mount / Rear mount
  • Enclosure: Metal
  • Cooling: Fanless design
  • Power: 12V DC input (24V DC optional)
  • Included accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
  • Certifications: CE, FCC
