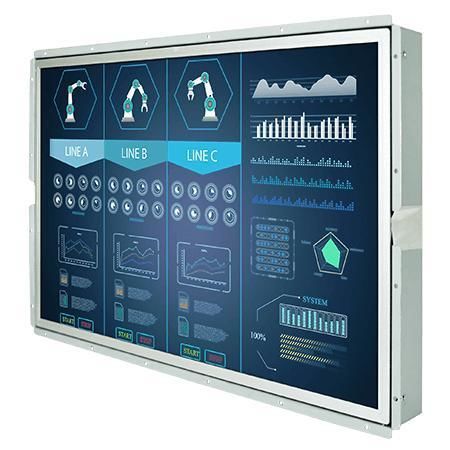

LCD monitor W24L100-OFA2

resistive touch screen24"1920 x 1080

Overview Winmate W24L100-OFA2 is a 24-inch open frame display designed for industrial visualization, control rooms and equipment monitoring. The open frame provides an LCD with a supporting structure to protect electronics without an external enclosure, enabling integration into kiosks, ATMs, vending machines and OEM equipment. It features low power consumption and fanless cooling for reliable long-term operation in production environments.

Key Features

• 24-inch, 1920 x 1080
• VGA input standard; HDMI and DVI optional
• Open frame format with VESA mount; rear mount optional
• Optional touchscreen and protection glass variants

Product highlights

• Fanless design and low power draw for continuous industrial operation
• Multiple mounting options for flexible installation in embedded systems and kiosks
• Open-frame construction simplifies bezel-less integration into OEM equipment
• Rugged metal enclosure and industrial-grade components for high reliability
• High image quality with 16.7M colors and wide viewing angles
• Configurable I/O: VGA standard; HDMI, DVI, USB for touch; optional audio and speakers

Technical specifications

• Size: 24.0 inches
• Touch / Glass: Resistive touch (optional); Protection glass without touch (optional); SAW touch (optional)
• Resolution: 1920 x 1080
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• Viewing angles: 89, 89, 89, 89
• Display colors: 16.7M
• Active area: 527.04 x 296.46 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• IO ports: USB 1 x for touch (optional); Video: VGA standard; HDMI and DVI optional
• Audio: line in 3.5mm optional; 2 x speakers optional
• Dimensions: 576.4 x 343.6 x 58 mm
• Mounting: VESA mount standard; rear mount optional
• Enclosure: metal; Cooling: fanless design
• Power: 12V DC input standard; 24V DC optional
• Control: 5 keys (-, +, Power, Esc, Enter)
• Included accessories: VGA cable, HDMI cable, 100-240V AC to DC adapter, power cord, manual, VESA screws
