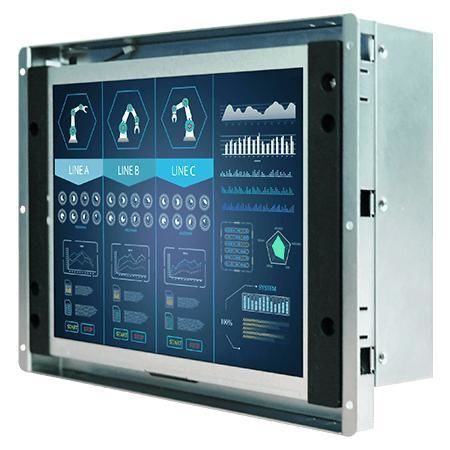

LCD monitor R08T100-OFA1

resistive touch screen8.4"800 x 600

Overview
Winmate R08T100-OFA1 is an 8.4-inch open-frame display for industrial visualization, control rooms and embedded kiosks. It provides stable hardware integration, low power consumption and long lifecycle availability for OEMs and system integrators.

Key features

• 8.4-inch LCD, 800 x 600 resolution
• VGA (standard); HDMI and DVI optional
• Open-frame design with VESA and rear mounting options
• Metal enclosure with fanless cooling for continuous operation
• Optional resistive touch and protection glass
• Customization of panel brightness, ports, logo and accessories

Product details

• Designed for low power consumption and efficient heat dissipation in production environments
• Multiple mounting solutions (VESA, rear mount) for kiosks, ATMs, vending machines and industrial panels
• Open-frame module supports easy integration without an external bezel
• Standard I/O: VGA; optional HDMI, DVI, USB for touch; optional audio and speakers
• Includes typical accessories: VGA/HDMI cables, AC–DC adapter (100–240V), power cord, manual and VESA screws (varies)

Certifications

• CE
• FCC

Applications

• Industrial visualization and HMI
• Control rooms and monitoring stations
• Kiosks, ATMs, vending machines and signage
• OEM and embedded systems requiring long-term availability

Specifications

• Size: 8.4 inches (specs may list 8.0 inches)
• Resolution: 800 x 600
• Panel Brightness: 250 nits
• Contrast Ratio: 500:1
• Viewing Angles: 70/70/70/50
• Display Color: 16.2M
• Active Area: 162 x 121.5 mm
• Dimensions: 221 x 163 x 45.9 mm; Weight: 1.2 kg
• Operating Temp/Humidity: 0°C to 50°C; 10%–90% RH non-condensing
• Power: 12V DC input
• Control: 5 keys (-, +, Power, Esc, Enter)
