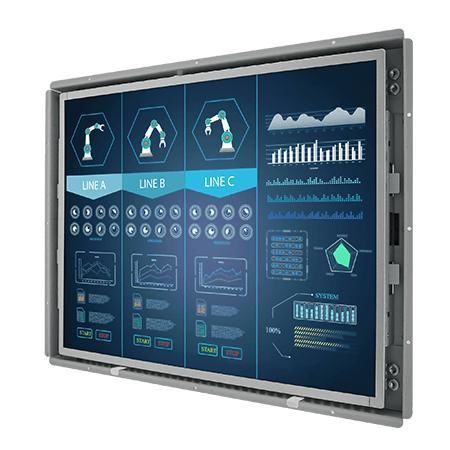

LCD monitor R19L300-OFA1HB

resistive touch screenindustrial19"

Overview
Winmate R19L300-OFA1HB is a 19-inch open-frame high-brightness display designed for industrial visualization, control rooms and equipment monitoring. It supports continuous 24/7 operation and offers flexible mounting and I/O options for OEMs and system integrators.

Key features

• 19" 1280 x 1024
• Panel brightness: 1000 nits
• VGA (default); HDMI/DVI optional
• Open-frame design with VESA and rear mounting
• Fanless metal enclosure

Certifications

• CE
• FCC

Product highlights

• Low power consumption and effective heat dissipation suitable for long-term use in production environments.
• Flexible installation: rear mount and VESA options simplify integration into kiosks, ATMs, vending machines and embedded systems.
• Open-frame monitor: LCD module with supporting frame for direct integration without an external bezel.
• Optically bonded anti-reflective cover glass reduces reflections and improves readability in bright or high-humidity environments.
• Wide customization options including touch type, glass surface treatment, panel brightness, display ports and regional power inputs.

Technical specifications

• Model: R19L300-OFA1HB
• Brand: Winmate
• Size: 19.0 inches
• Resolution: 1280 x 1024
• Panel brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angles: 85, 85, 80, 80
• Display color: 16.7M Colors
• Active area: 376.32 x 301.06 mm
• Touch / Glass (optional): Resistive; Protection glass without touch; SAW
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IO ports: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional); USB 1 x for touch (optional); Audio line-in (3.5 mm) (optional); 2 x speaker (optional)
• Mechanical dimension: 445 x 355 x 55 mm
• Mounting: VESA mount / Rear mount
• Enclosure: Metal
• Cooling system: Fanless design
• Power rating: 12V DC input (24V DC optional)
• Accessory (included): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
