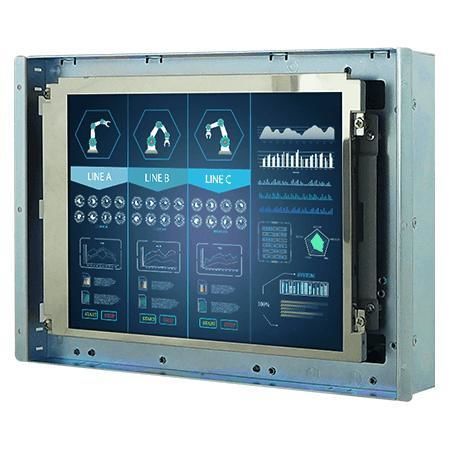

TFT monitor R08L200-OFU1

resistive touch screen8.4"800 x 600

Overview
Winmate R08L200-OFU1 is an 8.4-inch open frame display engineered for industrial visualization, control rooms and equipment monitoring. It targets industrial buyers, OEMs and system integrators requiring an embeddable display with multiple mounting options and standard video inputs.

Key features

• 8.4-inch TFT display, 800 x 600 resolution
• Standard VGA input; HDMI and DVI available as options
• Open frame construction suitable for integration
• VESA mount and rear-mount compatible
• Fanless metal enclosure

Benefits
Low power consumption and efficient heat dissipation for continuous operation in production environments. Flexible installation via rear mount or VESA mount supports kiosks, ATMs, vending machines and other embedded applications. Optional touch and protection glass choices (resistive, SAW, or protection glass) and configurable I/O allow adaptation to OEM requirements. High panel brightness and controlled assembly ensure consistent image quality in industrial settings.

Certifications

• CE
• FCC

Technical specifications

• Model: R08L200-OFU1
• Display size: 8.4 inches
• Resolution: 800 x 600
• Panel brightness: 600 nits
• Contrast ratio: 600:1
• Viewing angles: 75, 75, 60, 70
• Colors: 262K Colors
• Active area: 170.4 x 127.8 mm
• Touch / glass options: Resistive Touch (optional); Protection Glass without touch (optional); SAW Touch (optional)
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• USB: 1 x USB for touch (optional)
• Audio: Audio line in (3.5mm) (optional); 2 x Speaker (optional)
• Dimensions: 251.2 x 174.8 x 49 mm
• Weight: 1.4 kg
• Mounting: VESA mount / Rear mount
• Enclosure: Metal
• Cooling: Fanless design
• Power rating: 12V DC input (24V DC optional)
• Control: 5 keys: -, +, Power, Esc, Enter
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Accessories included: VGA cable; HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional accessory: Remote controller (varies by product)
