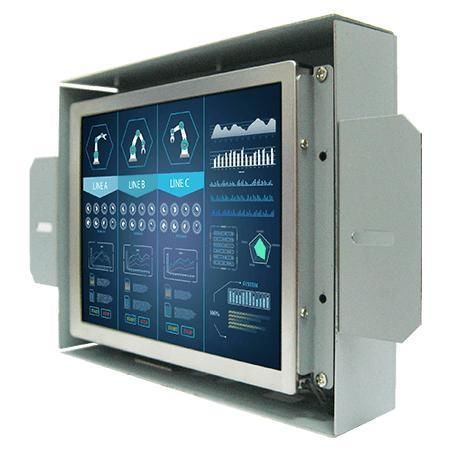

LCD monitor R06L200-OFA1

resistive touch screenindustrialPOS

Overview
Winmate R06L200-OFA1 is a 6.5-inch open-frame monitor for industrial visualization, control rooms, equipment monitoring and embedded OEM applications. It provides a compact open-frame structure with VESA and rear mounting options, multiple video inputs (VGA standard, HDMI/DVI optional) and a fanless metal enclosure for continuous operation in factory and kiosk environments.

Key Features

• 6.5-inch display, 640 x 480 resolution
• VGA input (standard); HDMI and DVI optional
• Open-frame design for easy integration; VESA and rear mounting
• High brightness panel: 700 nits
• Fanless metal enclosure for passive cooling

Product Highlights
Low power consumption and effective heat dissipation support long continuous operation. Multiple mounting options (rear and VESA) allow flexible installation into kiosks, ATMs, vending machines and embedded equipment. Open-frame format supplies the LCD module with a supporting structure (no bezel) for OEM integration. Customization options include brightness, glass surface treatment, touch availability and I/O configuration.

Certifications

• CE
• FCC

Applications

• Industrial visualization
• Control room displays and equipment monitoring
• Embedded kiosks: ATM, vending, retail kiosks
• Airport information displays and casino monitors

Technical specifications

• Display Size: 6.5 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without Touch (Optional)
• Resolution: 640 x 480
• Panel Brightness: 700 nits
• Contrast Ratio: 600:1
• View Angles: 80, 80, 70, 70 (deg)
• Display Color: 16.2M Colors
• Active Area: 132.48 x 99.36 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• I/O Ports: USB 1 x (for touch, optional); Video: 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Mechanical Dimension: 249 x 142.8 x 37.1 mm
• Mounting: VESA Mount / Rear Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Power Rating: 12V DC input
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
