LCD monitor S17L500-OFM1

resistive touch screenindustrialfor displays

Overview

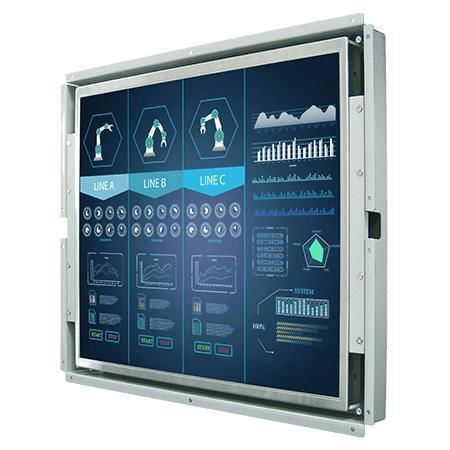

The Winmate S17L500-OFM1 is a 17” open-frame display engineered for industrial visualization, control rooms and equipment monitoring. Its open-frame construction facilitates integration into kiosks, ATMs, vending machines and other embedded systems while protecting core electronics and ensuring long-term operation in industrial environments.

Key features

• 17.0” diagonal LCD, 1280 x 1024 resolution
• VGA input (standard); HDMI and DVI optional
• Open-frame design for easy OEM integration
• VESA and rear mounting options
• Metal enclosure with fanless cooling

Highlights & product benefits

• Low power consumption and effective heat dissipation for continuous operation in production environments
• Flexible mounting options (rear mount, VESA) to suit varied installation requirements
• Multiple touch and glass options (resistive, SAW or protection glass without touch) for different interaction and protection needs
• High reliability and configurable I/O for industrial applications

Environment & reliability
Designed for reliable operation in indoor industrial settings with operating humidity of 10%–90% RH (non‑condensing) and operating temperature from 0°C to 50°C. Fanless metal enclosure reduces maintenance and improves mean time between failures.

Characteristics / Technical specifications

• Display Size: 17.0 inches
• Touch / Glass (options): Resistive Touch Screen (optional); Protection Glass without Touch (optional); SAW Touch (optional)
• Resolution: 1280 x 1024
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85/85/80/80
• Display Color: 16.2M Colors
• Active Area: 337.920 x 270.336 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports: USB 1 x (for touch, optional)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5mm) (optional); 2 x Speaker (optional)
• Mechanical Dimension: 410 x 330 x 58 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional, varies by product)
• Power Rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
