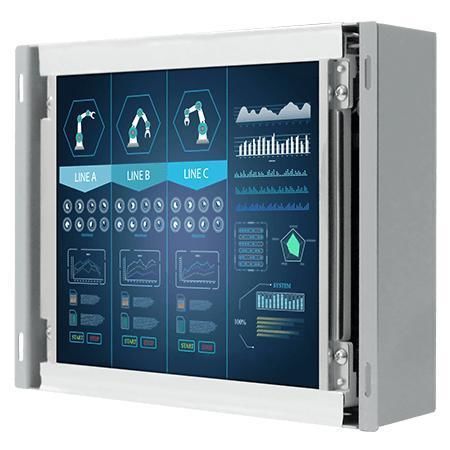

Touch screen monitor R08T200-OFT1HB

for digital signagefor HMI interface8.4"

Overview
Winmate R08T200-OFT1HB is an 8.4-inch open-frame high-brightness display for industrial visualization, control rooms and equipment monitoring. Designed for continuous operation, it combines low power consumption, a fanless thermal design and multiple mounting options for OEM integration into kiosks, ATMs, vending machines and information displays.

Key features

• 8.4-inch, 800 x 600 resolution
• High brightness panel: 1000 nits with anti-reflective optical bonding
• VGA input standard; HDMI and DVI optional
• Open-frame construction with VESA and rear-mount options
• Fanless metal enclosure and 12V DC input

Product highlights
The unit offers energy-efficient continuous operation and effective heat dissipation for industrial environments. Optical bonding reduces reflections and improves contrast for better readability in bright or humid conditions. Multiple customization options (brightness, glass treatment, I/O ports, accessories) enable adaptation to OEM, kiosk and embedded applications.

Certifications
CE, FCC

Technical specifications

• Model: R08T200-OFT1HB
• Active area: 170.4 x 127.8 mm
• Display colors: 16.2M
• Contrast ratio: 600:1
• Viewing angles: 80/80/60/80
• Resolution: 800 x 600
• Panel brightness: 1000 nits
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10%–90% RH non-condensing
• Dimensions: 251.2 x 174.8 x 49 mm
• I/O: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional), 1 x USB for touch (optional)
• Audio: audio line in 3.5 mm (optional); 2 x speakers (optional)
• Mounting: VESA mount / Rear mount
• Enclosure: metal; Cooling: fanless
• Power: 12V DC input; Accessories included: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws
• Controls: 5 keys (-, +, Power, Esc, Enter)
