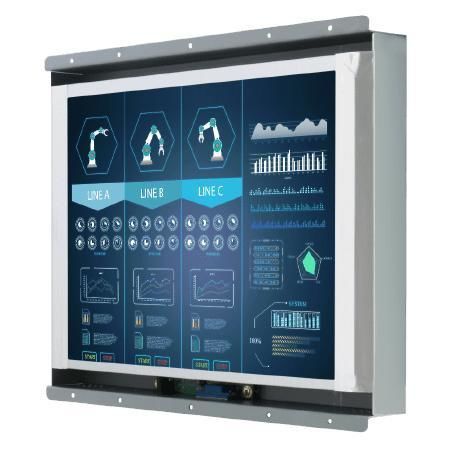

Resistive touch screen monitor R12L600-OFM2HB

for displaysfor digital signagefor industrial machines

Overview
Winmate R12L600-OFM2HB is a 12.1-inch open-frame high-brightness display for industrial visualization, control rooms, equipment monitoring and semi-outdoor signage. It supports continuous 24/7 operation, offers improved readability under bright conditions through high brightness and optical bonding options, and provides multiple mounting options (rear and VESA) for integration into kiosks, ATMs, vending machines, airport displays and OEM equipment.

Key features

• 12.1" 1024 x 768 open-frame high-brightness display
• Panel brightness: 1000 nits
• Video inputs: VGA (default); HDMI and DVI optional
• Open-frame design with VESA and rear/panel mounting
• Fanless design and metal enclosure for industrial reliability

Advantages and usage
Engineered for low power consumption and effective heat dissipation to ensure long-term durability in production and industrial environments. Optical bonding and anti-reflective cover glass options improve sunlight readability, reduce reflections and increase contrast for semi-outdoor and high-humidity applications. Suitable for system integrators, OEMs and installers requiring reliable display modules for embedded and kiosk solutions.

Certifications

• CE
• FCC

Technical specifications

• Model: R12L600-OFM2HB
• Brand: Winmate
• Display size: 12.1 inches
• Resolution: 1024 x 768
• Panel brightness: 1000 nits
• Contrast ratio: 700:1
• Viewing angles: 80/80/70/70 (degrees)
• Colors: 16.2M
• Active area: 261.12 x 163.2 mm
• Touch/glass options: Resistive touch (optional); Protection glass (no touch) (optional); SAW touch (optional)
• Video I/O: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch (optional)
• Audio: Line-in (3.5 mm) optional; 2 x speakers optional
• Mechanical dimensions: 300 x 250 x 40 mm
• Mounting: VESA mount / rear mount (panel mount)
• Enclosure: Metal
• Cooling: Fanless design
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Power: 12V DC input (24V DC optional)
• Accessories included: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessories: Remote controller (optional)
• Control: 5 keys (-, +, Power, Esc, Enter)
• Applications: Industrial visualization, control rooms, equipment monitoring, digital signage, kiosks, ATMs, vending machines, airport displays
