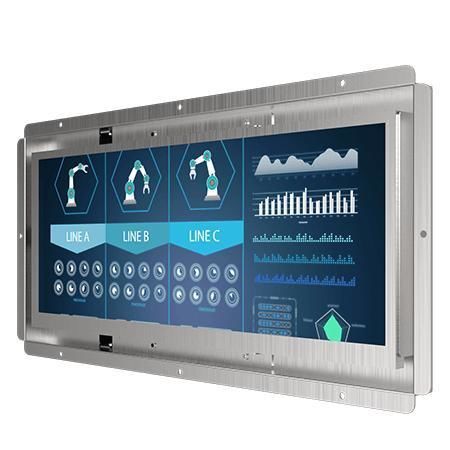

LCD monitor W12L100-OFB1

with touchscreenfor HMI interface12.3"

Overview
Winmate W12L100-OFB1 is a 12.3” open-frame display engineered for industrial visualization, control rooms and equipment monitoring. Its open-frame form factor and metal enclosure enable easy panel integration, OEM installation and long-term availability for embedded and mission-critical systems.

Key features

• 12.3” 1920 x 720 resolution
• VGA input (default); HDMI and DVI optional
• High brightness 1000 nits and 16.7M color support
• Open-frame design for panel mounting and kiosk integration
• Protection glass; fanless metal enclosure

Highlights / Benefits
Open-frame construction simplifies mounting in control panels, kiosks or custom enclosures and provides straightforward access for maintenance. Dual support for VGA and HDMI ensures compatibility with legacy and modern video sources. High panel brightness and wide viewing angles improve readability in bright or multi-observer industrial environments. Compact dimensions and VESA support make the unit suitable for OEM integration and space-constrained installations.

Certifications

• CE
• FCC

Product details
Protection glass touch panel, metal enclosure and fanless thermal design for reliable, continuous operation. Standard accessories typically include VGA and HDMI cables, 100–240V AC to DC adapter, power cord, manual and VESA screws. Optional accessories: remote controller, audio/speakers depending on configuration.

Caractéristiques / spécifications techniques

• Model: W12L100-OFB1
• Display size: 12.3 inches
• Resolution: 1920 x 720
• Panel brightness: 1000 nits
• Contrast ratio: 1000:1
• View angles: 88, 88, 88, 88
• Display color: 16.7M Colors
• Active area: 292.92 × 110.22 mm
• Touch / Glass: Protection Glass
• Video I/O: 1 × VGA (Default); 1 × HDMI (Optional); 1 × DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 × Speaker (Optional)
• Power rating: 12V DC in; 24V DC in (optional)
• Mechanical dimensions: 344.3 × 167.8 × 40.5 mm
• Mounting: Panel mount
• Enclosure: Metal
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Included accessories: 1 × VGA cable; 1 × HDMI cable; 100–240V AC to DC Adapter; Power cord; Manual; VESA screws (varies by product)
• Optional accessory: Remote controller (varies by product)
• Control keys: 5 keys (-, +, Power, Esc, Enter)
• Certifications: CE, FCC
