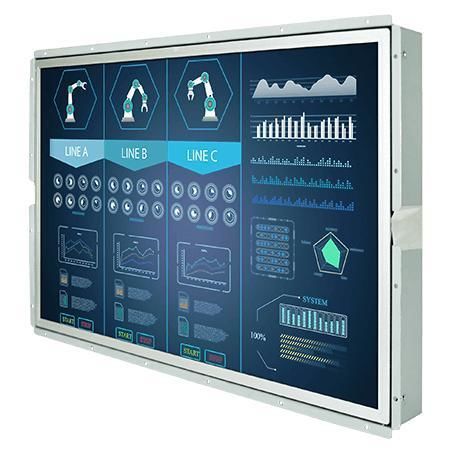

LCD monitor W24L100-OFA2HB

resistive touch screenfor displaysfor digital signage

Overview
The Winmate W24L100-OFA2HB is a 24" open-frame high-brightness display engineered for industrial visualization, control rooms, equipment monitoring, kiosks and OEM integration. The open-frame construction provides a supporting structure for the LCD without an outer bezel, enabling straightforward embedding into kiosks, ATMs, vending machines, airport information displays and other integrated systems.

Key features

• 24.0 in, 1920 x 1080 (Full HD)
• High brightness panel: 1000 nits
• Open-frame design (VESA mount default; rear mount optional)
• Video inputs: VGA (standard); HDMI, DVI (optional)
• Optional touch technologies: Resistive, SAW; optional protection glass

Product highlights

• Low power consumption and effective heat dissipation for reliable long-term operation in industrial environments
• Flexible installation: VESA and rear mounting options
• Anti-reflective, optically bonded protective glass to reduce reflections and improve readability in high ambient light and humid conditions
• Designed for 24/7 operation with industrial-grade metal enclosure and fanless cooling
• Wide customization options: brightness, glass treatment, display ports, power input (12V/24V), logo and mechanical configuration

Certifications

• CE
• FCC

Characteristics / Technical specifications

• Model: W24L100-OFA2HB
• Display size: 24.0 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel brightness: 1000 nits
• Contrast ratio: 3000:1
• View angles: 89/89/89/89 (°)
• Display color: 16.7M colors
• Active area: 527.04 x 296.46 mm
• Touch / Glass (optional): Resistive touch; Protection glass without touch; SAW touch
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certification: CE, FCC
• I/O Ports: 1 x USB for touch (optional)
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5mm) (optional); 2 x speakers (optional)
• Mechanical dimensions: 576.4 x 343.6 x 58 mm
• Mounting: VESA mount (default); Rear mount (optional)
• Enclosure: Metal
• Cooling system: Fanless design
• Accessories included: VGA cable; HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies)
• Optional accessory: Remote controller (optional)
• Power rating: 12V DC in (standard); 24V DC in (optional)
• Control: 5 keys (-, +, Power, Esc, Enter)
