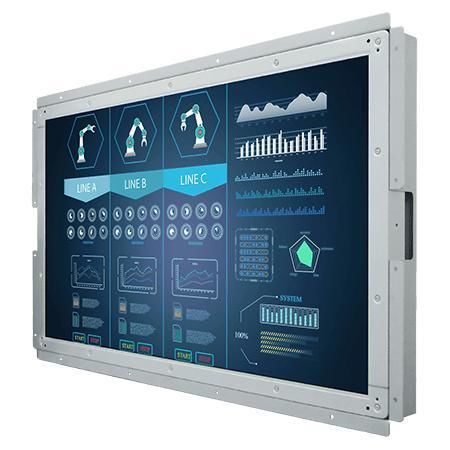

LCD monitor W32L300-OFA3TRindustrial32"1920 x 1080
Add to favorites
Compare this product
Characteristics
- Technology
- LCD
- Applications
- industrial
- Display size
- 32"
- Resolution
- 1920 x 1080
- Mounting
- VESA mounting, open-frame
- Other characteristics
- HDMI, USB, VGA, DVI port
- Width
698.4 mm
(27.4961 in)- Height
392.85 mm
(15.4665 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Overview
Winmate W32L300-OFA3TR is a 32" open-frame transflective display designed for industrial visualization, control rooms and equipment monitoring. It features 1920 x 1080 resolution, transflective panel technology and multiple mounting options for OEM and embedded integration.
Key Features
Benefits & Applications
Certifications
Display Specifications
Environmental & Power
Ports & Interfaces
Accessories & Options
Control
Typical applications
Winmate W32L300-OFA3TR is a 32" open-frame transflective display designed for industrial visualization, control rooms and equipment monitoring. It features 1920 x 1080 resolution, transflective panel technology and multiple mounting options for OEM and embedded integration.
Key Features
- 32", 1920 x 1080 open-frame transflective display
- VGA (default), HDMI and DVI input options
- Open-frame design with VESA and rear mounting
- Transflective panel for improved visibility in varied lighting
- Low power consumption and efficient heat dissipation
Benefits & Applications
- Open-frame construction for direct integration into kiosks, ATMs, vending machines and OEM enclosures
- Suitable for control rooms, industrial visualization and equipment monitoring
- Configurable with touch/protection glass, panel brightness and I/O options to meet project requirements
Certifications
- CE
- FCC
Display Specifications
- Model: W32L300-OFA3TR
- Brand: Winmate
- Display size: 32 inches
- Resolution: 1920 x 1080
- Panel brightness: 400 nits
- Contrast ratio: 4000:1
- View angles: 89/89/89/89
- Display color: 16.7M colors
- Active area: 698.4 x 392.85 mm
- Transflective: Yes
- Touch / Glass: Protection Glass (optional)
Environmental & Power
- Operating temperature: 0°C to 50°C
- Storage temperature: -10°C to 60°C
- Operating humidity: 10% to 90% RH, non-condensing
- Power: 24V DC input
Ports & Interfaces
- Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
- USB: 1 x USB for touch (optional)
- Audio: Audio line-in (3.5 mm) optional; 2 x speakers optional
Accessories & Options
- Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
- Optional: Remote controller, custom logo, glass surface treatments, panel brightness variants, country-specific power plug options
Control
- Front keys: 5 keys ( -, +, Power, Esc, Enter )
Typical applications
- Industrial visualization, control rooms and equipment monitoring
- Kiosks, ATMs, vending machines, airport information displays and digital signage
