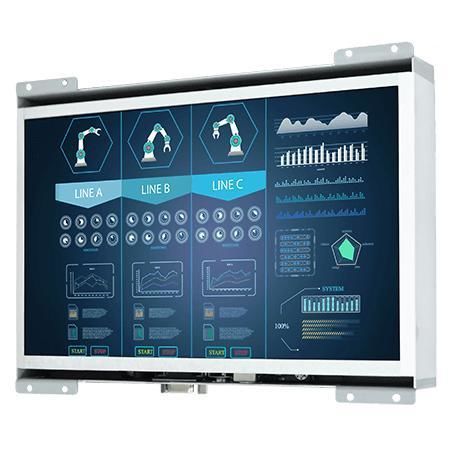

LCD monitor W10L100-OFH2

resistive touch screenPOSfor displays

Overview

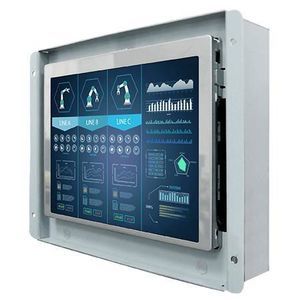

Winmate W10L100-OFH2 is a 10.1-inch open-frame display designed for industrial visualization, control rooms, kiosks, ATMs, vending machines and embedded systems. It features a metal enclosure, fanless cooling and multiple mounting options for OEM and system integrators.

Key features

• 10.1-inch LCD, 1280 x 800 resolution
• VGA (standard), HDMI and DVI (optional) video inputs
• Open-frame design for integration into kiosks and embedded equipment
• VESA mount and rear mount options
• Touch options: resistive touch or protection glass (both optional)

Highlights / Product benefits

• Fanless metal design for improved reliability in continuous industrial operation
• Low power consumption and effective heat dissipation suitable for factory and commercial environments
• Flexible mounting (VESA and rear) simplifies integration into cabinets and kiosks
• Wide customization: panel brightness, glass surface treatment, I/O configuration and country-specific power options
• Available accessories: VGA/HDMI cables, AC/DC adapter and optional remote control

Certifications
CE, FCC

Technical specifications

• Model: W10L100-OFH2
• Display size: 10.1 inches
• Resolution: 1280 x 800
• Panel brightness: 350 nits (1000 nits optional)
• Contrast ratio: 800:1
• Viewing angles: 85 / 85 / 85 / 85
• Display color: 16.7M colors
• Active area: 216.96 x 135.6 mm
• Touch / Glass: Resistive Touch Screen (optional); Protection Glass w/o Touch (optional)
• IO ports: USB 1 x (touch, optional); Video: VGA (default), HDMI (optional), DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speaker (optional)
• Dimensions: 237 x 174 x 35 mm
• Mounting: VESA mount / Rear mount
• Enclosure: Metal
• Cooling: Fanless design
• Power rating: 12V DC input (standard); 24V DC input (optional)
• Control: 5 keys (-, +, Power, Esc, Enter)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
