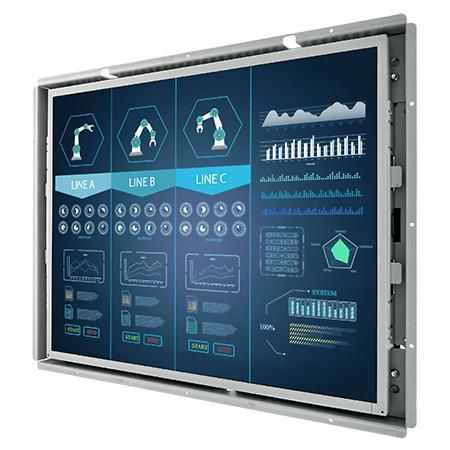

LCD monitor R19L300-OFM2

resistive touch screenindustrialfor HMI interface

Overview
Winmate R19L300-OFM2 is a 19-inch open-frame industrial display designed for industrial visualization, control rooms, equipment monitoring and kiosk/ATM integration. It provides a compact open-frame structure with VESA and rear mounting options, fanless cooling and versatile I/O for stable integration and long lifecycle availability.

Product Highlights

• 19” diagonal LCD, 1280 x 1024 resolution
• VGA (default) with optional HDMI / DVI inputs
• Open frame design for ATMs, vending machines, kiosks and OEM enclosures
• VESA mount and rear-mounting support
• Front certifications: CE, FCC

Key Features

• 19”, 1280 x 1024 (SXGA)
• VGA and optional HDMI/DVI video inputs
• Open-frame chassis for embedded installation
• VESA and rear mounting options
• Fanless metal enclosure

Functional Advantages

• Low power consumption and effective heat dissipation for continuous operation in production environments
• Flexible mounting options (VESA and rear mount) for integration into machines and kiosks
• Open-frame architecture enables easier mechanical integration without external bezel or enclosure
• Industry-grade assembly for consistent image quality in factory and commercial settings
• Customization options: panel brightness, glass surface treatment, touch variants and display ports

Certifications

• CE
• FCC

Technical specifications

• Display Size: 19.0 inches
• Resolution: 1280 x 1024
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 89°/89°/89°/89°
• Display Color: 16.7M Colors
• Active Area: 376.32 x 301.06 mm
• Touch / Glass (optional): Resistive Touch; Protection Glass (no touch); SAW Touch
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports: 1 x USB for touch (optional)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5mm) (optional); 2 x Speaker (optional)
• Dimension (W x H x D): 445 x 355 x 56 mm
• Mounting: VESA Mount / Rear Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies)
• Optional Accessory: Remote controller (varies by product)
• Power Rating: 12V DC input (24V DC optional)
• Control: 5 keys: -, +, Power, Esc, Enter
