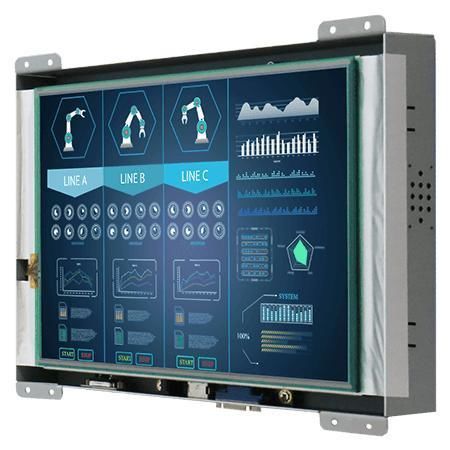

Resistive touch screen monitor R10L100-OFP3

industrialPOSfor displays

Overview Winmate R10L100-OFP3 is a 10.4-inch open frame display engineered for industrial visualization, control rooms and equipment monitoring. It combines low power consumption, fanless cooling and flexible mounting to simplify integration in embedded and kiosk applications.

Key features

• 10.4 in display with 640 x 480 resolution
• VGA input (standard); HDMI and DVI optional
• Open frame design with VESA and rear mounting options
• Optional touchscreens (resistive, SAW) and protection glass

Applications

• Industrial HMI and process visualization
• Control rooms and monitoring stations
• ATMs, vending machines, kiosks and OEM embedded systems

Certifications

• CE
• FCC

Technical specifications

• Display Size: 10.4 inches
• Resolution: 640 x 480
• Touch / Glass: Resistive touch (optional); Protection glass w/o touch (optional); SAW touch (optional)
• Panel Brightness: 450 nits
• Contrast Ratio: 700:1
• View Angles: 80° / 80° / 80° / 60°
• Display Color: 16.2M colors
• Active Area: 211.2 x 158.4 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for touch (optional)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speakers optional
• Dimensions: 260 x 215 x 40 mm
• Mounting: VESA mount / rear mount
• Enclosure: Metal
• Cooling System: Fanless design
• Power Rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 keys (-, +, Power, Esc, Enter)
• Accessories: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws (varies by product)
• Optional Accessory: Remote controller (varies by product)
