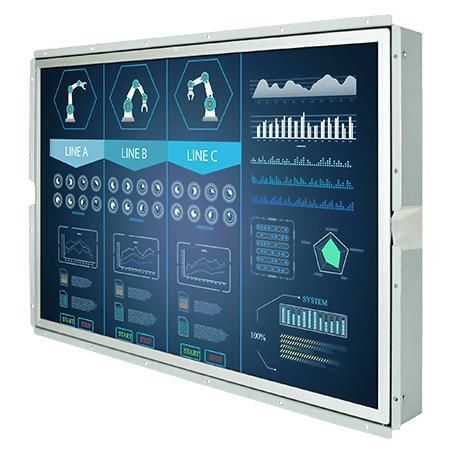

Resistive touch screen monitor W24L100-OFA2TR

industrial24"1920 x 1080

Overview

Winmate W24L100-OFA2TR is a 24-inch open-frame transflective display designed for industrial visualization, control rooms and equipment monitoring. It supports reliable continuous operation in embedded and mission-critical environments with long lifecycle availability and energy-efficient design. The open-frame construction and multiple mounting options enable straightforward integration into kiosks, ATMs, vending machines and information displays.

Key features

• 24.0 inches, 1920 x 1080 resolution, 250 nits brightness
• Transflective panel for improved visibility in varied lighting
• VGA (default) and HDMI / DVI (optional) inputs
• Open-frame design with VESA mount (default) and rear mount (optional)
• Front protection suitable for industrial environments (IP65 front protection indicated)
• Fanless design for reliable operation; 12V DC input (24V optional)

Product highlights

• Low power consumption and effective heat dissipation for long-term deployment
• Flexible installation with VESA and rear mounting options
• Open-frame format simplifies OEM and system integration into kiosks and equipment
• Optional touch and customization: resistive touch, SAW, protection glass, panel brightness and logo customization

Technical specifications

• Display size: 24.0 inches; Resolution: 1920 x 1080; Brightness: 250 nits; Contrast ratio: 3000:1; View angles: 89/89/89/89; Colors: 16.7M
• Active area: 527.04 x 296.46 mm
• Touch / Glass options: Resistive touch (optional); Protection glass w/o touch (optional); SAW touch (optional)
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C–50°C; Storage temperature -10°C–60°C
• Certifications: CE, FCC
• IO ports: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional); 1 x USB for touch (optional); Audio line-in 3.5 mm (optional); 2 x speaker (optional)
• Mechanical: Dimensions 576 x 343 x 58 mm; Enclosure: Metal
• Mounting: VESA mount (default); Rear mount (optional)
• Power: 12V DC input (24V optional); Included accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws
• Controls: 5 front buttons: -, +, Power, Esc, Enter
