Touch screen monitor W15L100-OFB2

industrialfor displaysfor digital signage

Product summary

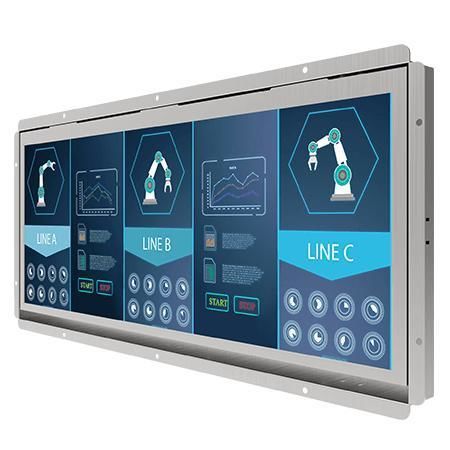

Winmate W15L100-OFB2 is a 14.9-inch open-frame display designed for industrial visualization, control rooms and embedded equipment monitoring. It targets industrial buyers, OEMs and system integrators who need compact, high-brightness integration-ready displays with long lifecycle availability.

Key features

• 14.9" panel with 1920 x 720 resolution
• VGA input (default); HDMI and DVI optional
• Open-frame (bezel-free) design for kiosk, panel and embedded integration
• High brightness panel (950 nits) and fanless metal enclosure

Overview
Open-frame 14.9" solution balancing compact footprint and clear visuals. The bezel-free format enables flush integration into kiosks, POS units and industrial control panels. Designed for stable hardware integration and continuous operation in industrial environments.

Certifications

• CE
• FCC

Accessories (standard / optional)

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by configuration)
• Optional: Remote controller, protection glass, touch kit, speakers (varies by configuration)

I/O & Controls

• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• USB: 1 x USB for touch (Optional)
• Audio: Audio line-in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Buttons: 5 keys (-, +, Power, Esc, Enter)

Environment & Mechanical
Operating humidity: 10% to 90% RH, non-condensing
Operating temperature: 0°C to 50°C
Storage temperature: -10°C to 60°C

Use cases
Suitable for industrial visualization, control rooms, equipment monitoring, interactive kiosks and embedded display applications where reliable integration and high brightness are required.

Specifications

• Model: W15L100-OFB2
• Size: 14.9 inches
• Resolution: 1920 x 720
• Panel brightness: 950.0 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/85/85
• Display color: 16.7M
• Active area: 355.68 × 133.38 mm
• Touch / Glass: Protection Glass (Optional)
• Video inputs: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• USB port: 1 x USB for touch (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimensions: 391.1 x 178.6 x 56.2 mm
• Mounting: Panel Mount
• Enclosure: Metal
• Cooling system: Fanless design
• Power rating: 12V DC in (standard); 24V DC in (optional)
• Controls: 5 Keys (-, +, Power, Esc, Enter)
• Certifications: CE, FCC
