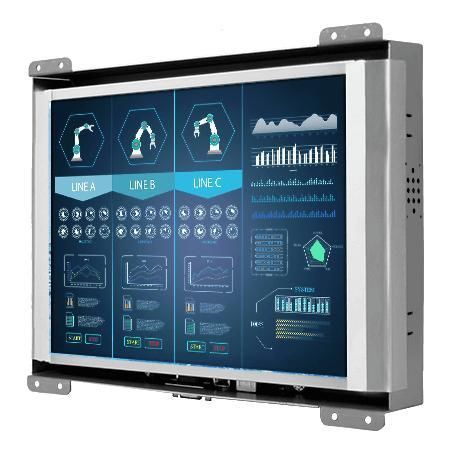

LCD monitor R10L600-OFP1

resistive touch screen10.4"800 x 600

Overview
R10L600-OFP1 is a 10.4" open-frame display designed for industrial visualization, control rooms and equipment integration. It provides stable hardware integration and long lifecycle availability for OEMs, system integrators and industrial buyers.

Key Features

• 10.4" 800 × 600 panel
• VGA input (default) and optional HDMI/DVI
• Open-frame design for embedding
• VESA and rear mounting options

Low Power Consumption
The display is engineered for low power draw and effective heat dissipation to support continuous operation in production and industrial environments.

Rear and VESA Mounting
Rear-mount and VESA mounting solutions enable flexible installation into cabinets, kiosks and custom housings.

Open Frame Monitor
Open-frame construction provides mechanical support and protection for the LCD module without a full bezel, facilitating integration into ATMs, vending machines, kiosks and other equipment.

High Reliability for Industrial Applications
Designed for industrial use with a metal enclosure and fanless cooling, the module supports sustained operation and is suitable for mission-critical visualization and monitoring.

Outstanding Image Quality
High panel brightness and optimized color reproduction deliver readable and consistent images in varied lighting conditions.

Display Ports and Customization
Multiple I/O and customization options are available, including touch choices (resistive/SAW), panel brightness, glass treatments (AR/AG), port configurations and power input variants.

Technical Specifications

• Model: R10L600-OFP1
• Size: 10.4 inches
• Touch / Glass: Resistive Touch (optional); Protection Glass w/o Touch (optional); SAW Touch (optional)
• Resolution: 800 x 600
• Panel Brightness: 600 nits
• Contrast Ratio: 400:1
• View Angles: 70, 70, 70, 60
• Display Color: 262K Colors
• Active Area: 211.2 x 158.4 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB Port: 1 × USB for touch (optional)
• Video: 1 × VGA (default); 1 × HDMI (optional); 1 × DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 × speakers (optional)
• Dimensions: 260 × 215 × 35 mm
• Weight: 1.4 kg
• Mounting: VESA mount / rear mount
• Enclosure: Metal
• Cooling System: Fanless design
• Accessories included: 1 × VGA cable; 1 × HDMI cable; 100~240V AC-to-DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (optional, varies by product)
• Power Rating: 12V DC input (24V DC optional)
• Control Buttons: 5 keys: -, +, Power, Esc, Enter
