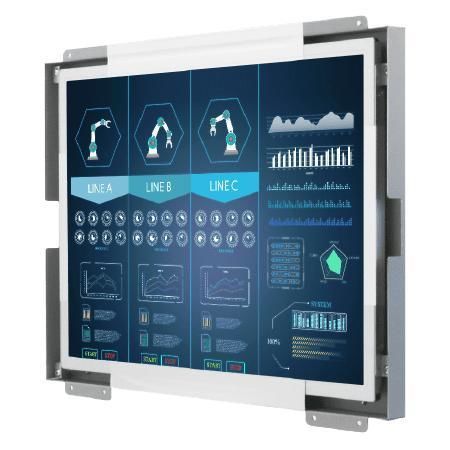

LCD monitor R15L100-OFA3

resistive touch screenfor industrial machines15"

Overview
Winmate R15L100-OFA3 is a 15-inch open-frame display engineered for industrial visualization, control rooms and equipment monitoring. It features a 1024 x 768 (XGA) panel, fanless metal enclosure, low power consumption and multiple video inputs (VGA standard, optional HDMI/DVI). Open-frame construction and rear/VESA mounting enable straightforward OEM integration.

Key features

• 15" open-frame display, 1024 x 768 resolution
• VGA input (standard); HDMI and DVI optional
• Open-frame design for embedded OEM integration
• VESA mount and rear-mount options
• Fanless design and metal enclosure for industrial environments

Product highlights

• Designed for continuous operation with low power draw and effective heat dissipation.
• Multiple mounting solutions for consoles, kiosks, cabinets and panels.
• Open-frame monitor provides LCD module with support structure for flush or embedded installation where a bezel is not required.
• Available touchscreen options (resistive, SAW) or protection glass without touch, and configurable panel brightness to suit ambient conditions.
• Industrial-grade assembly and QA burn-in processes support long-term reliability; certifications include CE and FCC.

Technical specifications

• Model: R15L100-OFA3
• Display size: 15.0 inches
• Resolution: 1024 x 768 (XGA)
• Panel brightness: 500 nits
• Contrast ratio: 2500:1
• Viewing angles: 88/88/88/88
• Colors: 16.7M
• Active area: 304.1 x 228.1 mm
• Touch/glass options: Resistive touch (optional); Protection glass w/o touch (optional); SAW touch (optional)
• Operating humidity: 10%–90% RH non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• I/O: 1 x USB (touch, optional); Video: 1 x VGA (standard), 1 x HDMI (optional), 1 x DVI (optional)
• Audio: Line-in (3.5 mm) optional; 2 x speakers optional
• Mechanical dimensions: 357.6 x 292 x 49.8 mm
• Weight: approx. 3 kg
• Mounting: VESA mount / rear mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 12V DC input (24V DC optional)
• Controls: 5 keys (-, +, Power, Esc, Enter)
• Accessories: VGA cable, HDMI cable, 100–240V AC–DC adapter, power cord, manual; VESA screws and remote controller optional
